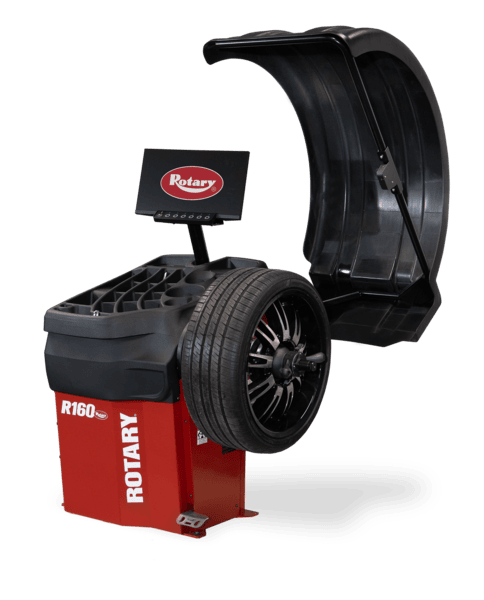

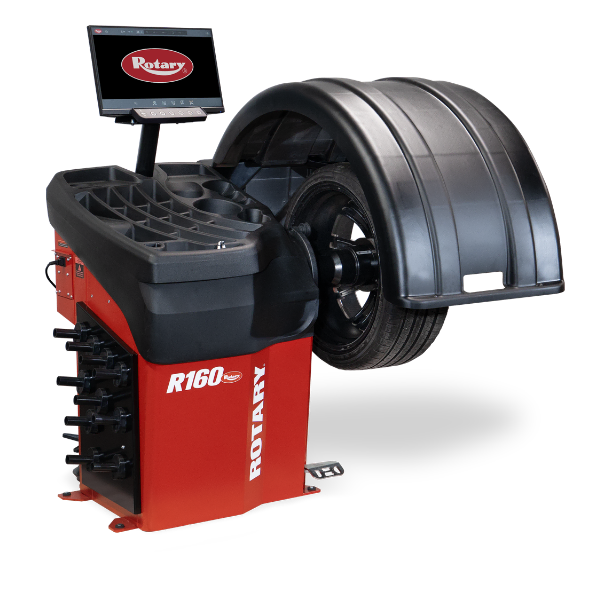

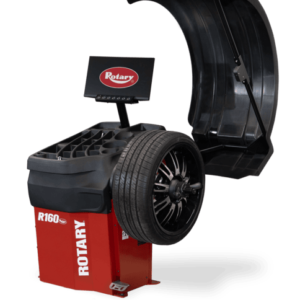

Wheel Balancer Machine with 3D Automatic Technology
The Rotary R160 Wheel Balancer Machine is designed for shops that need a faster, more accurate, and more technician-friendly way to balance passenger and light truck wheel assemblies. Built with Rotary’s 3D automatic technology, the R160 helps reduce manual inputs, improve weight placement accuracy, and support consistent results across multiple technicians.
For independent automotive repair shops, the R160 is a strong fit for growing tire and wheel service revenue because it combines fast cycle times, guided operation, and included premium adapters. For franchise dealership service departments, it supports the speed, repeatability, and finish quality needed in high-volume wheel service environments.
Rotary describes the R160 as a 3D auto technology electronic wheel balancer equipped for demanding professionals, with automatic measurement, guided balancing, laser weight positioning, automatic stop-in-position, and a sonar width sensor for automatic rim width measurement.
3D Auto Data Entry for Faster, More Accurate Setup
The R160 wheel balancer machine includes 3D automatic data entry for distance, diameter, and rim width. This is one of the biggest upgrades over simpler balancing machines because it reduces the number of manual measurements technicians need to enter before the balancing cycle begins.

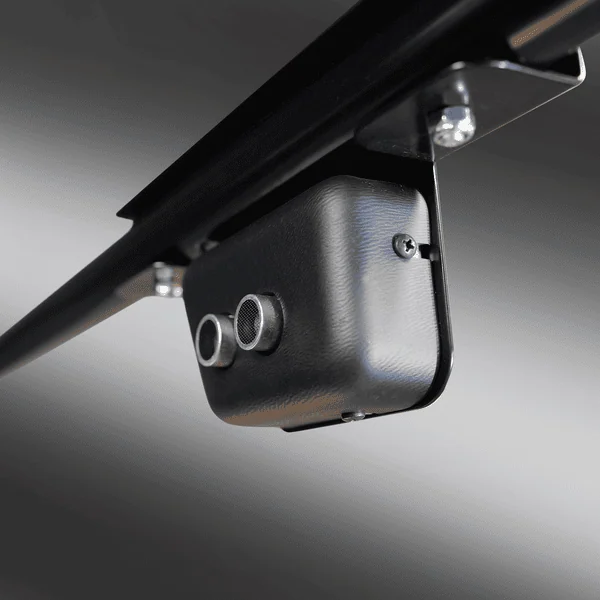

The R160 uses an inner data set arm for automatic measurement and includes a sonar width sensor for automatic rim width measurement. This helps technicians complete setup faster while reducing the risk of inaccurate inputs that can lead to rework, vibration comebacks, or inconsistent results.
For busy shops, 3D automatic data entry supports a more standardized process. That is especially valuable when multiple technicians are using the same machine throughout the day.

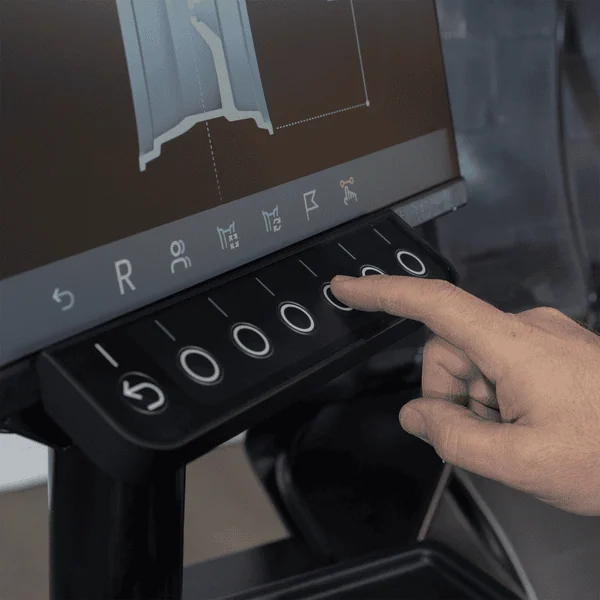

Large 22" Monitor with Guided Balancing Software
The Rotary R160 includes a large 22″ monitor with keypad controls, giving technicians a clear visual interface for balancing prompts, weight placement, and operating guidance. The guided balancing software helps walk technicians through the process, making the R160 easier to use across different experience levels.
This matters for both independent shops and dealerships. Independent shops need equipment that does not slow down the bay or require excessive training. Dealership service departments need equipment that supports repeatable processes across multiple technicians, advisors, shifts, and RO volume.
Rotary highlights the R160’s 22″ monitor with keypad and notes that the durable touch pad is linked directly to the standard color monitor while helping protect the monitor from grease and grime.

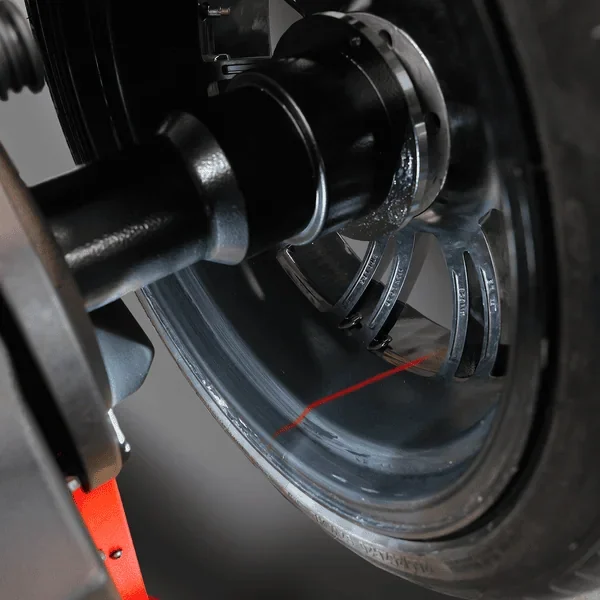

Laser Line Pointer for Stick-On Weight Positioning
The R160 includes a laser line pointer that helps technicians accurately position stick-on weights. The laser shines at the six o’clock position of the wheel, giving the technician a visual guide for adhesive weight placement.
This is a major workflow advantage for modern alloy wheels, performance wheels, and late-model passenger vehicles where accurate stick-on weight placement is critical. Better visual guidance helps improve first-time balancing accuracy, supports a cleaner finished appearance, and reduces the chance of technician guesswork.
For shops servicing premium wheels or dealership customers who care about finish quality, laser-guided weight positioning is one of the R160’s strongest conversion features.
Fast 6-Second Cycle Time for Better Shop Throughput
The R160 is built for fast wheel service with a 6-second cycle time. That helps technicians move through tire balancing jobs quickly and keeps the wheel service bay productive during tire installs, rotations, maintenance visits, and brake service appointments.
For independent shops, faster balancing can help increase daily service capacity and make tire-related services more profitable. For dealerships, a faster wheel balancer machine helps reduce bottlenecks and supports higher RO volume, especially when balancing is part of a larger maintenance or tire replacement workflow.
Rotary’s product specifications list the R160 with a 6-second cycle time, readout accuracy of 0.035 oz. / 1g, rotation speed under 100 RPM, and maximum assembly weight of 176 lbs.
Stop-On-Top and Auto Indexing
The Rotary R160 includes stop-on-top positioning and auto indexing to help technicians locate weight positions faster. Instead of manually rotating the wheel to search for imbalance locations, the machine automatically stops in the proper position for weight application.
The R160 also features automatic start when the hood is lowered and automatic stop of the wheel in the external unbalanced position. Rotary’s brochure describes automatic stop in the external unbalanced position, automatic rotation to the internal side, and automatic stop in the internal unbalanced position.
This helps reduce wasted motion, supports technician consistency, and makes the balancing process more efficient throughout the day.

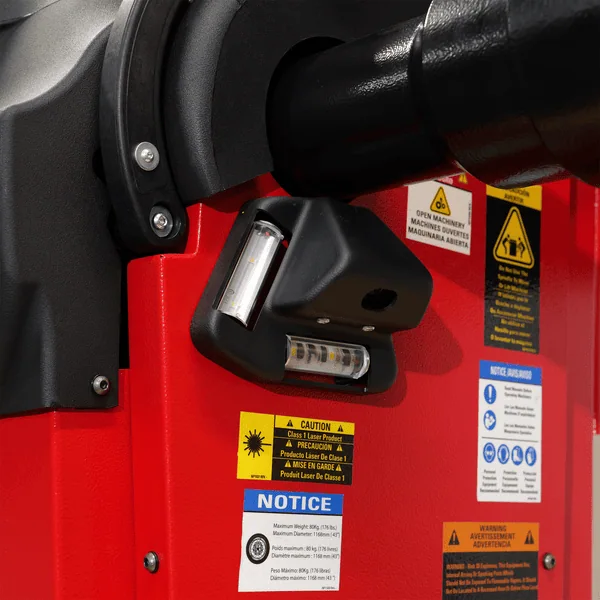

Double LED Lights Improve Visibility During Measurement
The R160 includes double LED lights that illuminate the base of the wheel while technicians use the distance and diameter gauge. Improved visibility helps technicians work more accurately in real shop conditions, especially around darker wheels, deep barrel rims, and low-light areas inside the wheel assembly.
This feature supports the R160’s positioning as a more advanced wheel balancer machine for shops that want higher usability, cleaner weight placement, and improved technician confidence.
Smart Static Mode for Flexible Wheel Balancing
The R160 includes Smart Static Mode, giving technicians added flexibility for wheel assemblies where static correction is preferred. This can be useful for certain wheel designs, appearance-sensitive applications, and situations where simplified correction is the right choice.
Combined with 3D automatic data entry, guided software, laser line positioning, and automatic indexing, Smart Static Mode makes the R160 a versatile machine for daily passenger and light truck wheel service.
Included Premium Adapters Add More Value Up Front
The R160 includes a strong standard accessory package, making it a higher-value option for professional shops that want more capability from day one.
Included Equipment:
- 8-piece double-sided collet kit
- GAR113 light truck adapter
- GAR124 open spacer
- Wheel width gauge
- Standard calibration kit
- Width calipers
- Weight pliers
- Calibration weight

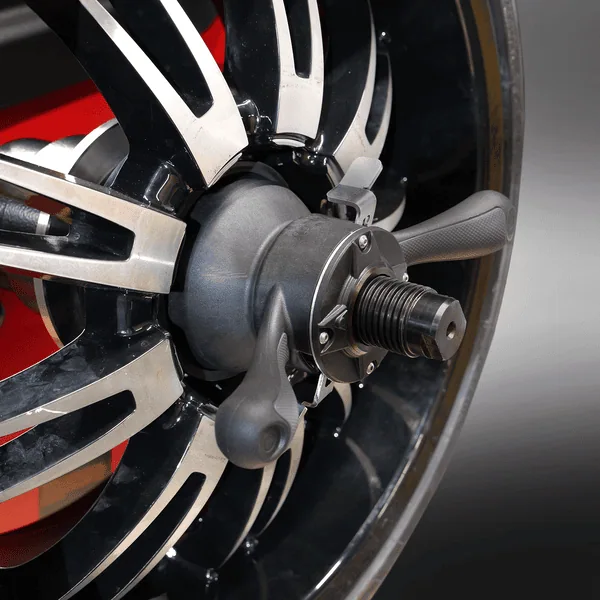

- GAR345 large quick nut replacement lock
For shops comparing the R160 to lower-cost machines, the included collet kit and light truck adapter package can reduce the need for immediate accessory purchases and help the shop handle a wider range of wheel assemblies from the start.
For additional centering equipment and replacement accessories, view our Rotary wheel balancer accessories. Shop Equipment USA’s accessories category includes cones, centering kits, adapters, calipers, and related add-ons for Rotary wheel balancing equipment.
Wheel and Tire Capacity
The Rotary R160 is designed to handle a broad range of passenger and light truck wheel assemblies, making it a strong fit for high-volume repair shops and dealership service departments.
- Rim diameter: 10″–30″
- Rim width: 1.5″–22″
- Maximum tire diameter: 44″
- Maximum assembly weight: 176 lbs.
- Readout accuracy: 0.035 oz. / 1g
- Cycle time: 6 seconds
- Rotation speed: Less than 100 RPM
- Power supply: 110V / 1Ø / 60Hz
Rotary’s R160 specifications list a 10″–30″ rim diameter range, 1.5″–22″ rim width range, 44″ maximum tire diameter, 176 lb. maximum assembly weight, and 110V / 1Ø / 60Hz power supply.
Space-Saving Footprint
The R160 is designed with a space-saving footprint, making it easier to place into active service environments where bay layout matters. Its dimensions are:
- Height: 57.5″
- Height with hood up: 66.5″
- Width: 50.25″
- Depth: 37.75″
This compact footprint can help independent shops add or upgrade wheel balancing capability without overloading the bay. For dealerships, it supports clean equipment planning in tire service lanes, express maintenance areas, and dedicated wheel service zones.
Ideal for Independent Repair Shops
For independent repair shops, the R160 wheel balancer machine is a strong investment when tire and wheel service is becoming a bigger part of the business. The 3D automatic data entry helps speed up setup. The laser line pointer helps improve stick-on weight accuracy. The 6-second cycle time helps technicians complete balancing jobs quickly. The included collet kit and light truck adapter package add more flexibility right away.
This makes the R160 a strong option for shops that want to reduce comebacks, increase tire service efficiency, and offer a more professional balancing experience without moving into the most expensive top-tier equipment.
Pair the R160 with a professional tire changer from our tire changers line to create a more complete wheel service bay. Shop Equipment USA’s tire changer category features Rotary tire changers designed to handle tire service quickly and efficiently.
The standard 110V power requirement also makes the R150 easier to place into many existing shop environments without major electrical changes. For shops adding tire service, replacing an older balancer, or trying to capture more wheel and tire revenue, the R150 offers a practical Rotary solution built for daily use.
Pair the R150 with a professional tire changer from our tire changers to create a more complete wheel service bay. Shop Equipment USA’s tire changer category features Rotary tire changers designed to handle tire service quickly and efficiently.
Ideal for Franchise Dealership Service Departments
For dealership service departments, the R160 supports the workflow demands of tire rotations, tire replacements, maintenance packages, brake service, inspections, and customer-pay recommendations. The combination of 3D automatic data entry, guided software, laser line positioning, and auto indexing makes the balancing process easier to standardize across technicians.
That consistency matters. Dealership customers expect smooth rides, clean wheel finishes, and minimal repeat visits for vibration concerns. The R160 helps technicians place weights accurately, work faster, and complete balancing services with more confidence.
Rotary also positions its equipment for auto dealers by emphasizing durability, reliability, lower cost of ownership, and support for keeping dealership service departments profitable.
Warranty and Support
Rotary wheel service equipment carries a 3-year parts warranty and 1-year labor warranty, with details available through Rotary and authorized distributors.
For additional manufacturer information, visit Rotary’s official wheel balancers page. Rotary describes its wheel balancer lineup as ranging from value-priced models to advanced laser-scanning solutions built to improve shop productivity.
Specifications
| Specification | Rotary R160 |
|---|---|
| Machine Type | 3D Electronic Wheel Balancer Machine |
| Technology | 3D Auto Technology |
| Rim Diameter | 10″–30″ |
| Rim Width | 1.5″–22″ |
| Maximum Tire Diameter | 44″ |
| Maximum Assembly Weight | 176 lbs. |
| Readout Accuracy | 0.035 oz. / 1g |
| Cycle Time | 6 seconds |
| Rotation Speed | Less than 100 RPM |
| Display | 22″ Monitor |
| Weight Positioning | Laser Line Pointer |
| Width Measurement | Sonar Width Sensor |
| Power Supply | 110V / 1Ø / 60Hz |
| Site Requirement | 110V / 60Hz, NEMA 5-15P |
| Height | 57.5″ / 66.5″ with hood up |
| Width | 50.25″ |
| Depth | 37.75″ |
| Warranty | 3-Year Parts / 1-Year Labor |
Frequency Asked Questions
The Rotary R160 is used to balance passenger and light truck wheel assemblies. It is designed for professional automotive repair shops, tire centers, and dealership service departments that need fast, accurate, and repeatable wheel balancing.
The R160 includes 3D automatic data entry for distance, diameter, and rim width, plus a sonar width sensor, laser line pointer, guided software, stop-on-top positioning, and auto indexing. These features help reduce manual input and improve balancing workflow.
Yes. The R160 includes a sonar width sensor for automatic rim width measurement, helping reduce manual setup steps and improve consistency.
The R160 supports rim diameters from 10" to 30", rim widths from 1.5" to 22", and tire diameters up to 44". It has a maximum assembly weight of 176 lbs.
The R160 has a 6-second cycle time, helping shops complete wheel balancing services quickly and efficiently.
Yes. The R160 includes a laser line pointer for stick-on weight positioning. The laser shines at the six o’clock position of the wheel to help technicians accurately place adhesive weights.
Yes. The R160 includes a large 22" monitor, keypad controls, guided balancing software, automatic data entry, and visual positioning aids to make the balancing process easier and more consistent.
The R160 uses 110V / 1Ø / 60Hz power. The provided site requirement is 110V / 60Hz with a NEMA 5-15P plug.
Yes. The R160 is a strong fit for independent shops that want a professional wheel balancer machine with 3D automatic measurement, laser-guided weight placement, included adapters, and a fast 6-second cycle time.
The R160 includes an 8-piece double-sided collet kit, GAR113 light truck adapter, GAR124 open spacer, wheel width gauge, standard calibration kit, width calipers, weight pliers, calibration weight, and GAR345 large quick nut replacement lock.
Yes. The R160 is well suited for dealership service departments because it supports consistent technician workflow, fast balancing, premium wheel appearance, and repeatable results across high-volume service operations.
