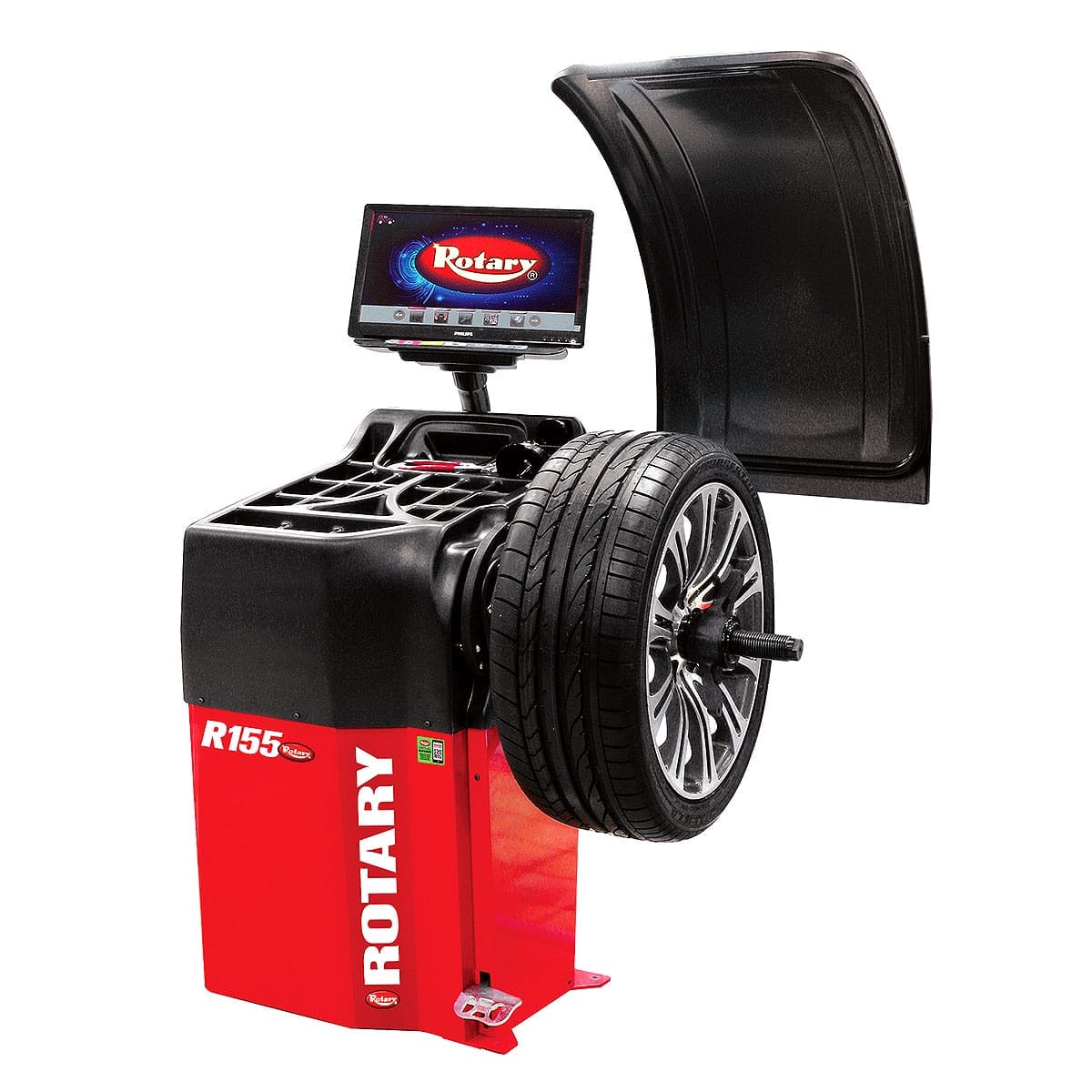

Rotary® Wheel Balancer – R155 | Pro 3D

Original price was: $11,303.00.Current price is: $7,403.00.

Equipped with all the features for the most demanding professional. Easy operation thanks to interactive inputs, which guide the operator during all the phases of the balancing process. Fast balancing process with automatic start when the cover is lowered and automatic stop of the wheel in the external unbalanced position.

  •  Simple visual display
  •  Automatic program
  •  Internal data gauge
  •  Space saving footprint

Brochure

Stock Information


Scroll Location

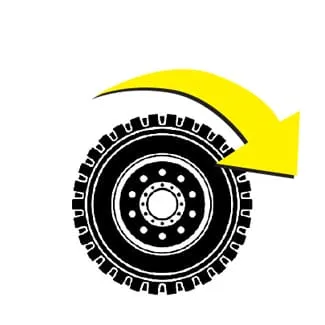

When the cover is lowered, the R155 automatically begins to spin the shaft.

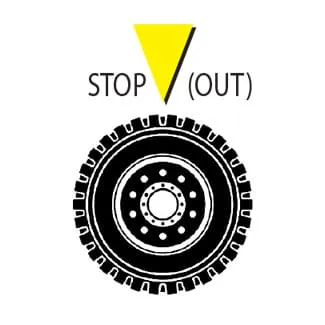

The balancer automatically stops in the external unbalanced position.

The balancer automatically rotates to the internal side.

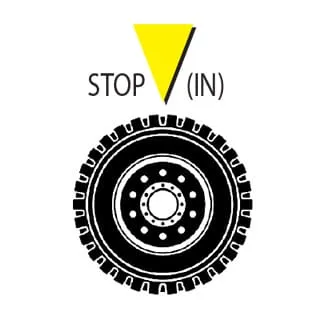

Finally, it automatically stops in the internal unbalanced position.

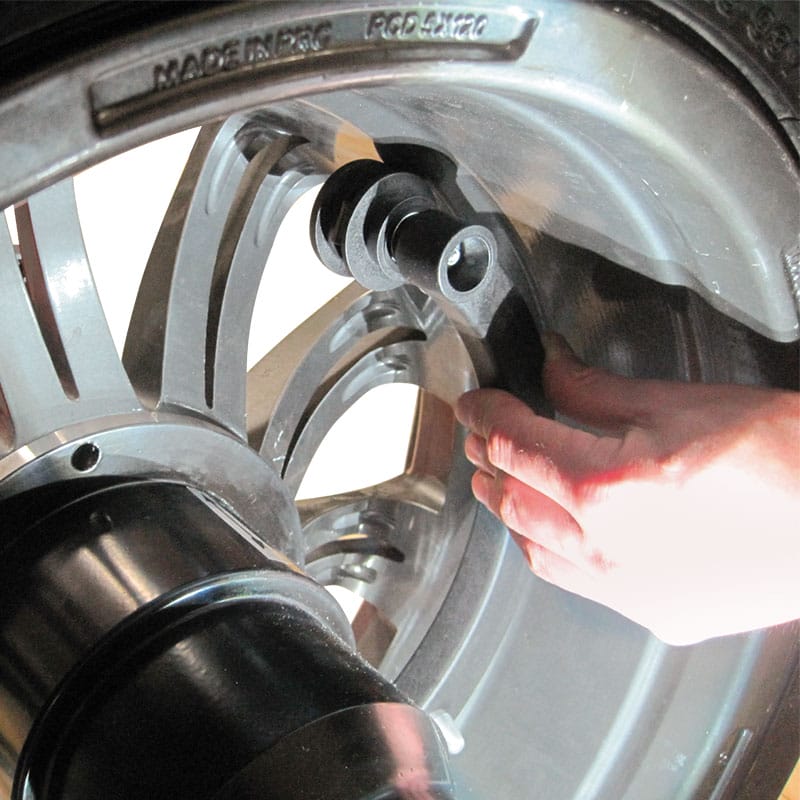

Double LED lights illuminate the base of the wheel while using the distance and diameter gauge.

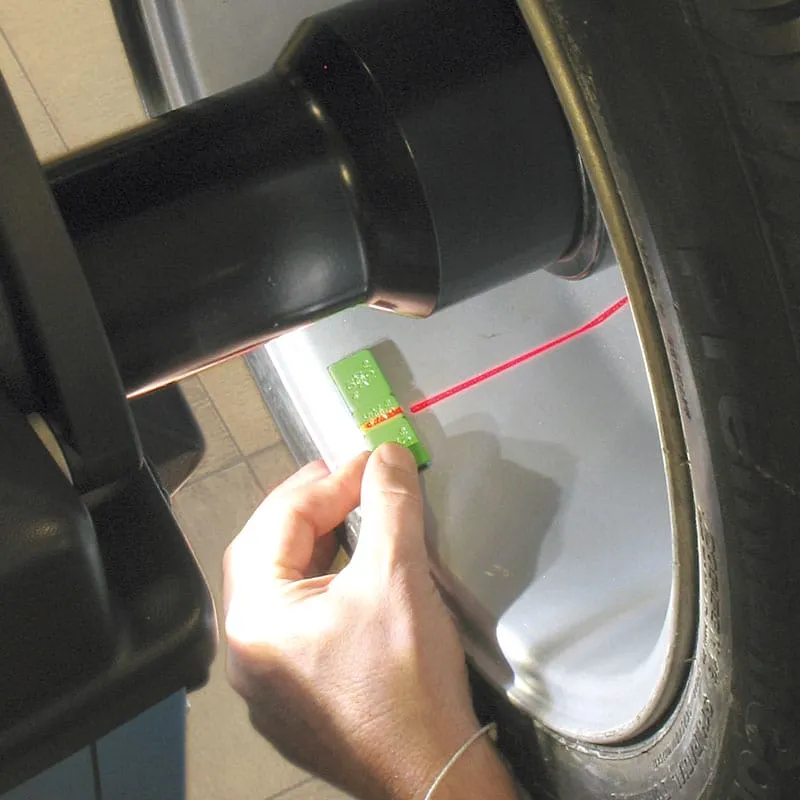

The Laser Blade shines down at the six o’clock position of the wheel to help accurately place stick-on weight.

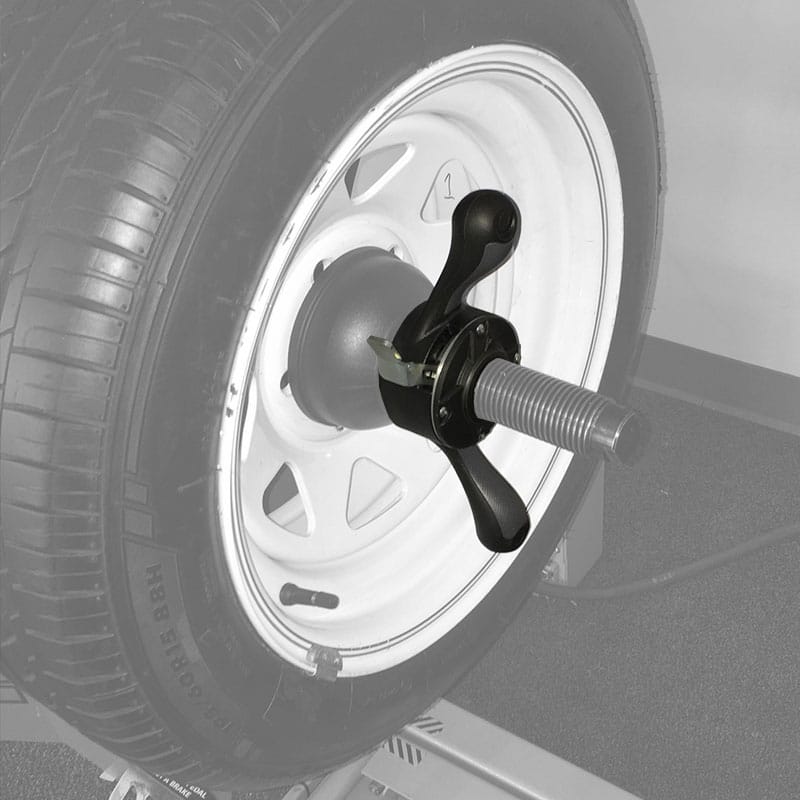

Use the Quick Lock to secure your wheel to the balancer’s shaft in a flash.

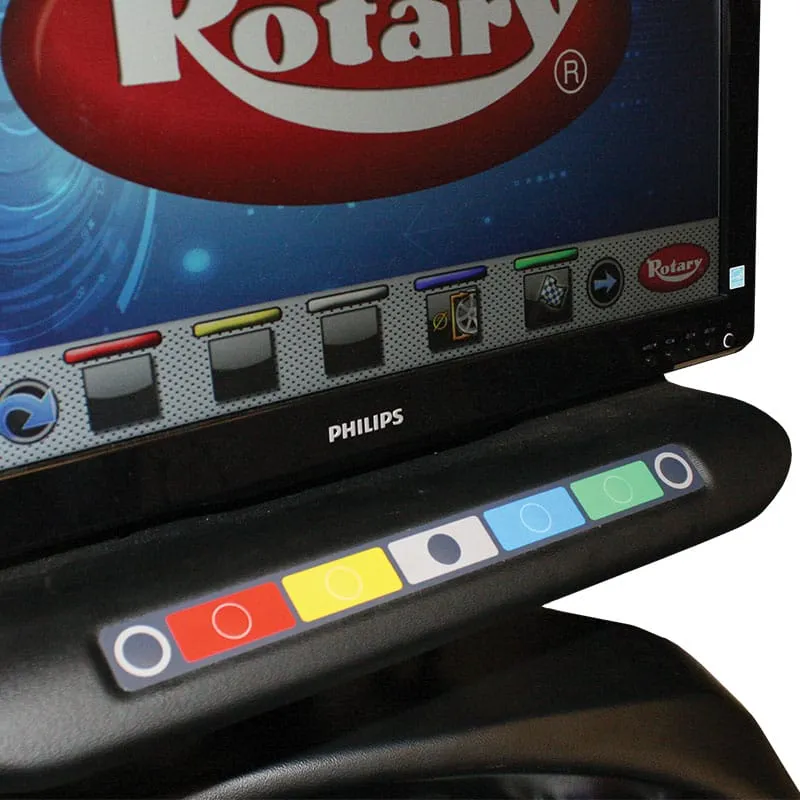

Linked directly to a standard monitor, the durable touch pad allows for a “gloved” input protecting the monitor from grease and grime.

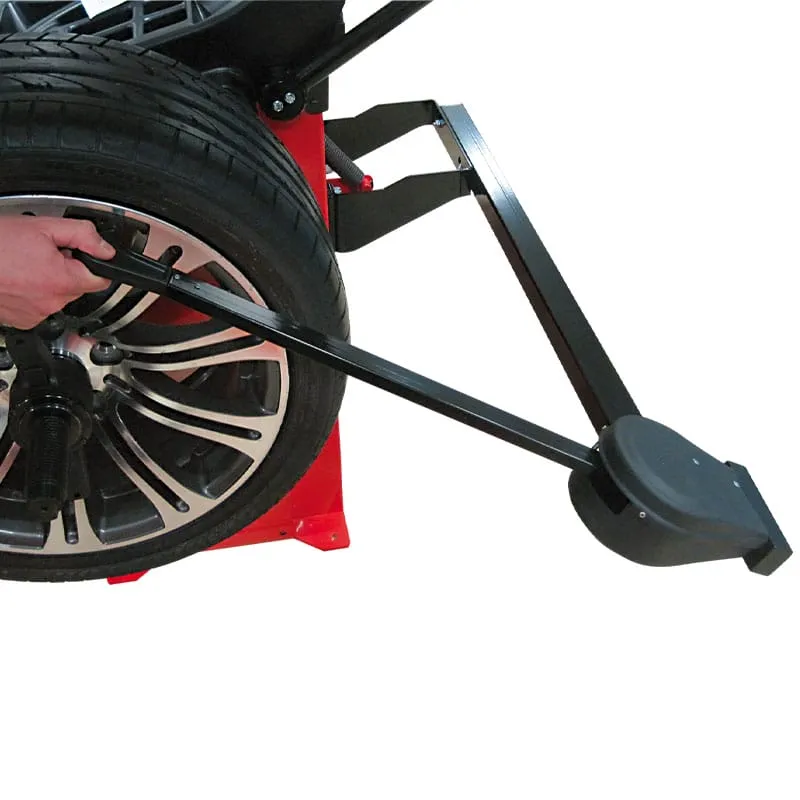

Width Arm Gauge comes as a standard feature with the R155. 3D wheel tire sensor caliper for automatic measure of the rim.

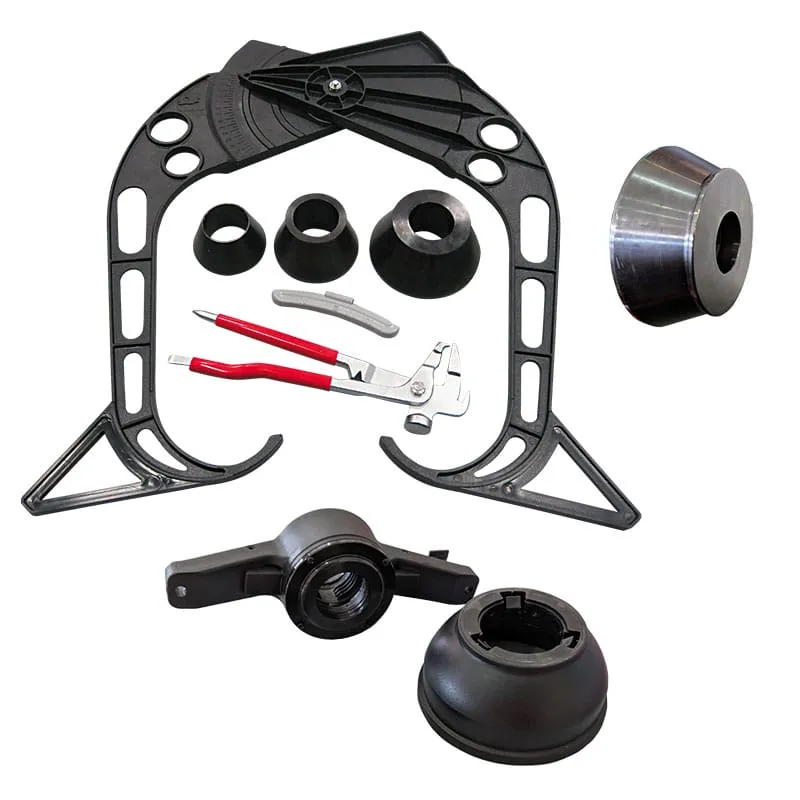

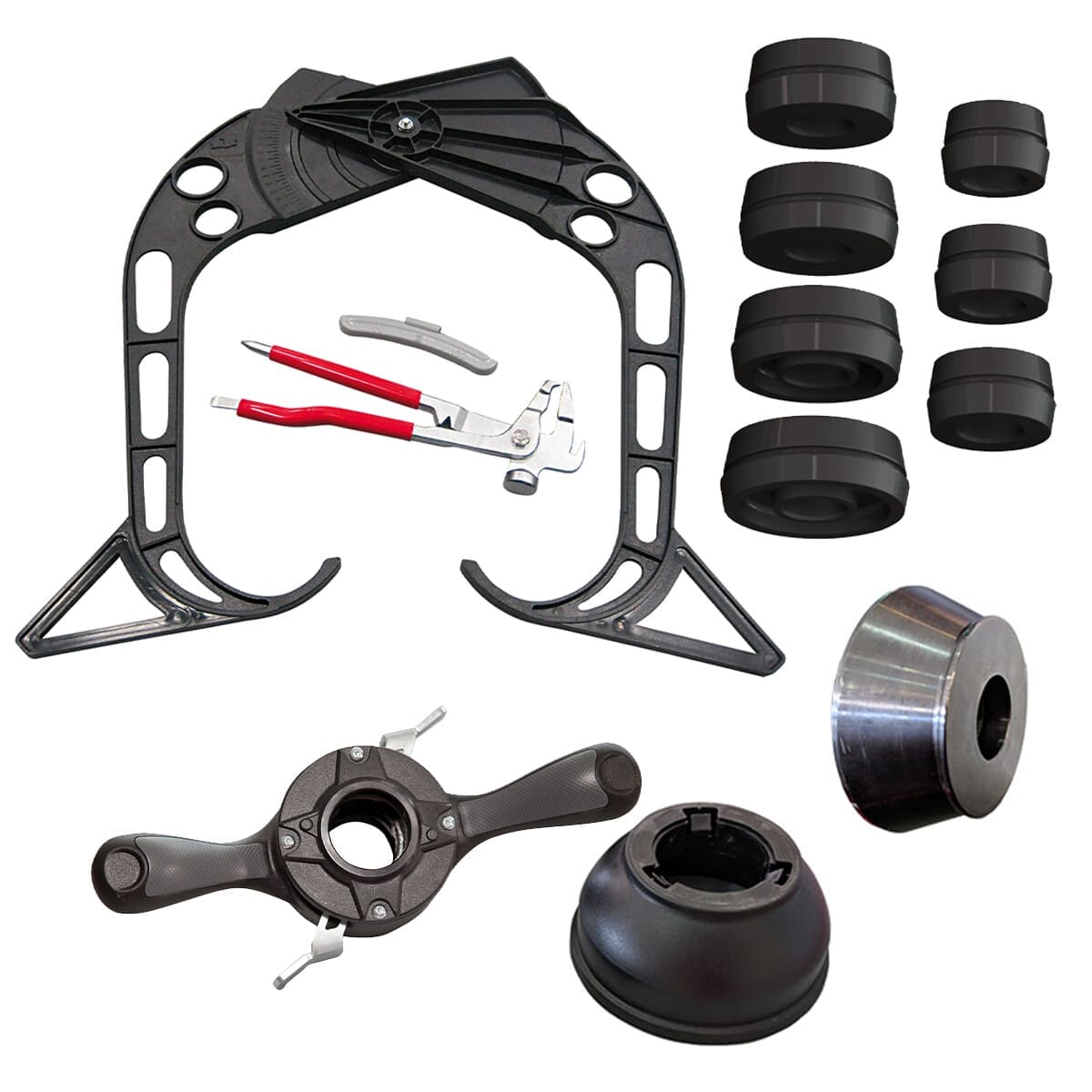

Standard accessories include a Caliper, 7 Collets, Quick-Locking Wingnut, Rubber Ring Protector, Light Duty Truck Cone, Calibration Weight, and Weight Pliers.

ADDITIONAL FEATURES:

  • Easy operation
  • Stop On Top and Auto indexing
  • Smart Static Mode
  • Wheel width gauge included
  • 19″ Monitor
  • 6 second cycle time
  • Automatic entry of distance, diameter, and width.

INCLUDES:

  • 8 piece Double Sided Collet Kit

SITE REQUIREMENTS:

  • 110v/60Hz NEMA 5-15P
Wheel Diameter

10″ – 30″ automatic

Tire Width

1.5″ – 22″

Maximum Tire Diameter

44″

Max Shaft Weight

154 lbs.

Read Out Accuracy

1g

Cycle Time

6 Seconds

Rotation Speed (rpm)

<100

Power Supply

110v / 60 Hz / 1Ø
