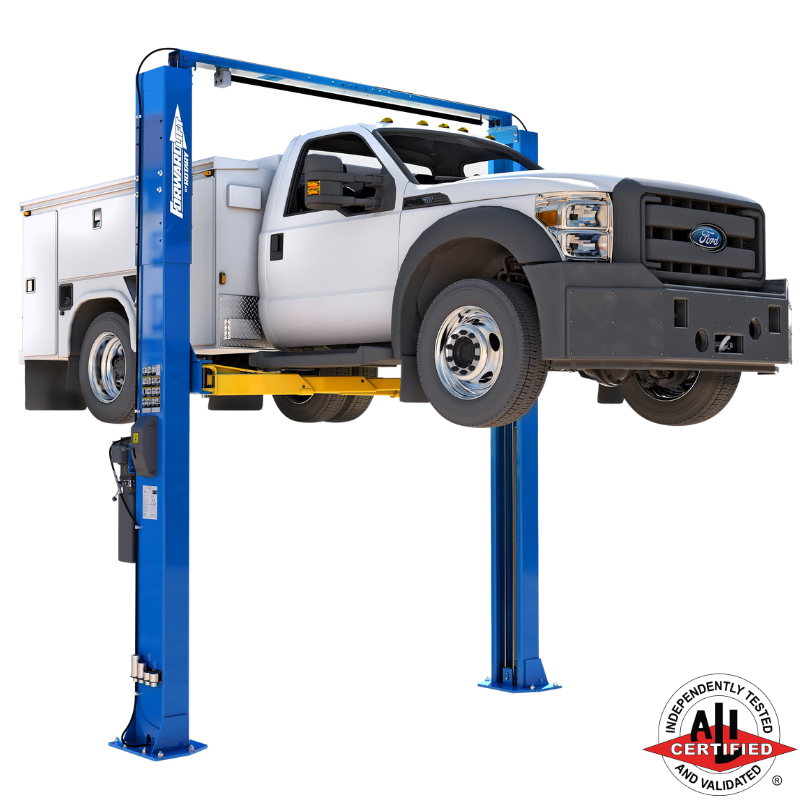

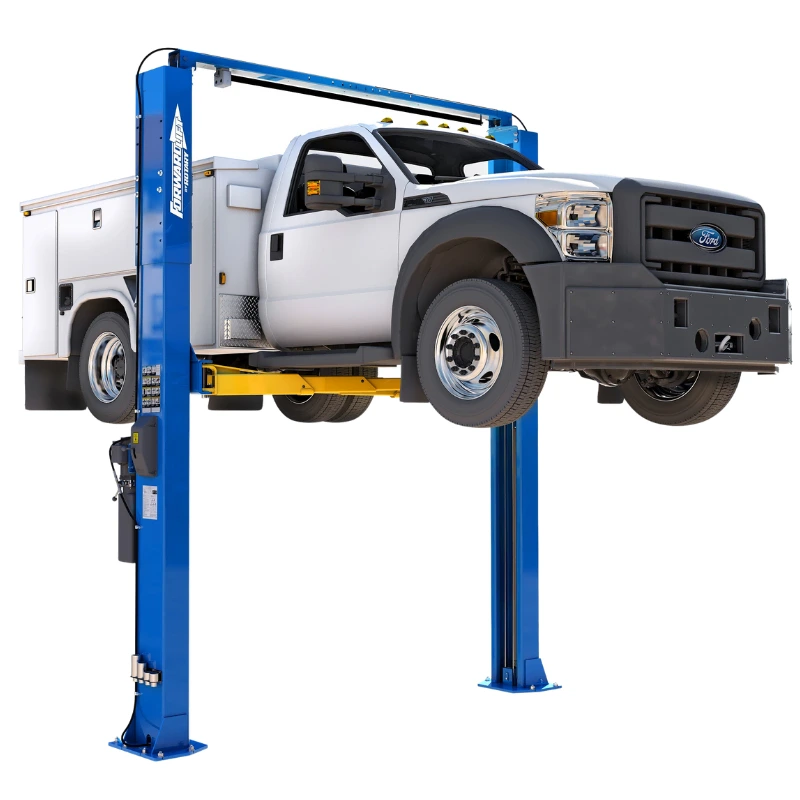

Forward Lift® I12PRO | Symmetrical Two Post Lift
$8,500.00 – $9,970.00
Forward’s I12PRO two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward’s spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.
ADDITIONAL FEATURES:
- Hydraulic cylinders in each column
- Full Stroke
- 75-3/4″ Rise | 80-3/4″ (With 5″ adapter extensions)
- 3 Stage arm design
- Door Bumper Kits Standard
- Overhead cable equalization
- Single Point lock release
- Large rubber-padded drop-in adapter with extra height extensions (1.75″, 3.5″ and 5″) are standard
- Spring operated arm restraints, disengage at floor level
- Padded overhead height limit switch bar
- Durable powder coat finish
ALI GOLD CERTIFIED
INCLUDES LOW-PROFILE DROP-IN ADAPTERS AND (4 each) ADAPTER EXTENSIONS AT 1 ¾”, 3 ½” and 5″
ADDITIONAL FEATURES:
- Symmetrical column design
- Versatile 3-stage front and rear arms
- Four height configuration models
- Adjustable width options
- Overhead cable equalization
- Single point lock release
- Includes adapter storage bracket
- Durable powder-coated finish
| Capacity | 12,000 lbs |
|---|---|
| Max Rise | 77 1/2" With 5" Extension |
| Overall Height | 166" (Standard), 178" (Max Height), 154", 143" |
| Overall Width | 140", 146" (Optional) |
| Drive Through Clearance | 102 3/4", 108 3/4" (Optional) |
| Overhead Switch Height | 137 1/8", 148 1/8", 160 1/8" (Standard), 172 1/8" (Extended) |
| Front Arm Reach | 27 3/4" (Min), 59" (Max) |
| Rear Arm Reach | 27 3/4" (Min), 59" (Max) |
| Width Inside Columns | 114 7/8" (Standard), 120 7/8" (Optional) |
| Motor | Single Phase, 2HP |
| Voltage | 17 amps, 208/230v |
| Time to Full Rise | 60 seconds |
| Lift Color Options | Black, Blue, Red |
