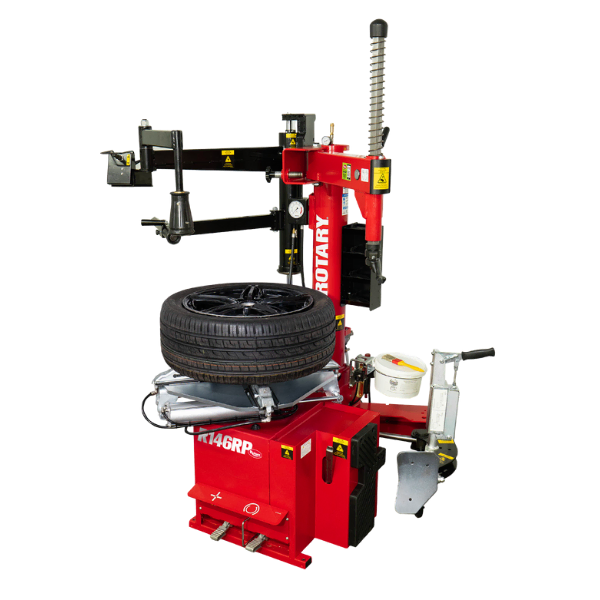

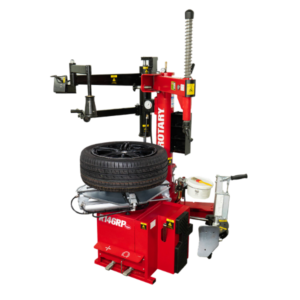

Rotary R146RP tire machine combines an electric motor with the PLUS91SA helper arm
Rotary R146RP tire machine combines an electric motor with the PLUS91SA helper arm
SKU: RWC246.26iRP Category: Tag: Brand:

Rotary® Tire Changer – R146RP | Swing Arm Pro with Helper – High Performance | Electric Motor

Original price was: $13,065.00.Current price is: $8,558.00.EARN 8,558 POINTS!

The Rotary R146RP tire changer combines an electric motor with the PLUS91SA helper arm, designed for high-volume tire service. Built with an extra-wide chassis and a powerful inflation system, it includes a hand-operated double-acting bead breaker and an air tank integrated into the column. Features easy-to-remove cast aluminum pedals for convenient maintenance.

  • High volume, extra wide chassis
  • Table inflation system
  • Hand Operated Double-acting bead breaker cylinder
  • Equipped with air tank in the column & valve tray
  • Pressed cast aluminum pedals that can be removed for easy servicing
  • Inside clamping 12″-28.5″ / Outside clamping 10″-26″
  • Motorcycle tire changing with adapter VSG800A107



Brochure

- +

The Rotary R146RP Tire Machine is designed for high-volume tire service, combining power, convenience, and flexibility. Equipped with an electric motor and the PLUS91SA helper arm, this model enhances productivity by simplifying mounting and demounting for various tire sizes. With a high-performance swing arm and extra-wide chassis, the R146RP is ideal for busy shops. Additionally, its table inflation system and air tank integrated within the column provide powerful inflation capabilities, streamlining service for technicians.

This model offers versatile clamping options, accommodating inside clamping from 12″ to 28.5″ and outside clamping from 10″ to 26″. The hand-operated, double-acting bead breaker cylinder improves efficiency, while the removable cast aluminum pedals make servicing simple. Designed for durability, the R146RP’s cast aluminum pedals can be easily removed for maintenance, helping the machine stay in top working condition.

Additional Features

  • Helper Arm (PLUS91SA): Supports efficient mounting and demounting, making work faster and easier. (Assembly required)
  • Integrated Wheel Lift Attachment: Reduces strain on technicians by effortlessly lifting heavy wheels.
  • Hand-Controlled Double-Acting Bead Breaker: Provides greater control, allowing for precise operation.
  • Bead Pushing Roller: Speeds up tire mounting, especially helpful for low-profile tires.
  • Storage Tray: Keeps tools and accessories organized and within reach.
  • Extra-Large 46” Frame: Ensures stability during tire-changing operations.
  • 110V Drive Motor: Supplies necessary torque for even the most challenging jobs.
  • Air Tank in Column: Adds power to support efficient inflation and bead seating.
  • Reinforced Gearbox Support: Steel plates provide structural support, reducing flex and extending the machine’s lifespan.
  • Removable Pedal Assembly: Allows for quick and easy maintenance, minimizing downtime.
  • Power Requirements: Operates on a 110V power supply.

Included with the R146RP Tire Changer:

  • (1) Tub of tire paste with brush
  • (4) Clamp protectors
  • (1) Bead breaker blade protector
  • (2) Tool protection kits
  • Bead lever
  • Plastic mount/demount head for secure handling

The Rotary R146RP Tire Changer machine is an excellent choice for high-performance tire service, with robust design and essential features for efficiency. Offering multiple configuration options and safety-enhancing accessories, it meets the demands of busy shops while reducing the risk of wheel damage. Whether for standard or challenging tire work, the R146RP provides reliable performance and streamlined operation.

Extra large frame allows for a maximum tire diameter of 46″.
Extra large frame allows for a maximum tire diameter of 46″.
New arm design for high performance, high volume, and extra height.
New arm design for high performance, high volume, and extra height.
Optional helper arm PLUS91SA assists in lower bead demounting, bead top pressing, and a tire lift for large and special tires.
Helper arm assists in lower bead demounting, bead top pressing, and a tire lift for large and special tires.
Removable pedal unit for easy maintenance.
Removable pedal unit for easy maintenance.
Extra wide tool shaft allows operation on tires up to 15″ maximum tire width.
Extra wide tool shaft allows operation on tires up to 15″ maximum tire width.
Air tank is encapsulated inside the changer, freeing up space behind the machine.
Air tank is encapsulated inside the changer, freeing up space behind the machine.

Warranty Summary

All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner.  Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account.  This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship (“Warrantable Failure”). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force major events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.

More Information: https://rotarylift.com/warranty/

Contact Forward Lift® For Warranty Claims and Questions: 800-445-5438

Maximum Tire Diameter

46"

External Clamping

10" – 26"

Maximum Torque to Chuck

885 ft/lbs (1200 Nm)

Internal Clamping

12" – 28.5"

Maximum Tire Width

15"

Bead Breaker Cylinder Power at 145psi

6,745 lbs

Power Supply

110v / 60 Hz / 1Ø
