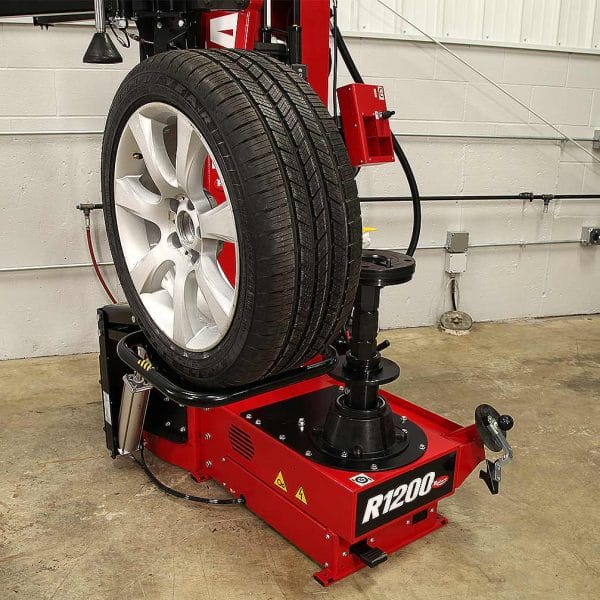

Rotary® Tire Changer – R1200 | Dual ROLLER Leverless Center Post Clamping

The Rotary R1200 Tire Changer is a robust, leverless tire-changing solution designed to handle even the most challenging wheels without damage. Featuring Rotary’s advanced dual roller system and patented leverless mount/demount tool, the R1200 ensures safe, precise tire changes. This unique setup includes a fully synchronized dual bead breaker arm that is chain-controlled for power-assisted positioning. The center post clamping system is quick-locking and adjustable in height, reducing the risk of wheel damage while increasing productivity.

The R1200’s intuitive controls and dual roller bead breaker allow for synchronized operation. In one seamless motion, the mount/demount tool and upper and lower rollers align to handle normal and reverse rims, run-flat, and SST tires. The innovative 0-15 RPM variable speed turntable motor, with an exclusive inverter, slows as bead stress increases, ensuring tire safety. With features like match mount indexing and a rotating pneumatic top bead pressing tool, this machine is built for versatile, high-performance tire servicing.

Key Features of the Rotary R1200 Tire Changer

• Dual Roller System: Offers leverless operation with no metal-to-metal contact, protecting wheels from damage.
• Adjustable Center Post Clamping: Quick-locking center post with three-position clamping system enhances safety and efficiency.
• Easy Control Operation: Simultaneous control of the mount/demount tool and rollers simplifies complex tire changes.
• Variable Speed Control: 0-15 RPM motor adjusts speed according to bead stress, preventing damage.
• Built-in Wheel Lift: Allows easy handling of heavy tires, enhancing workflow efficiency.

Additional Specifications

• Wheel Diameter Range: Supports 10″ to 30″ wheels.
• Integrated Features: Wheel lift, quick-lock rim clamping, pneumatic bead pressing tool, inflation station, and storage cabinet.
• Standard Accessories: Includes tub mounting paste with brush, traction device, and handheld inflator/bead blaster.
• Site Requirements: 220V single-phase 20-amp power supply, 115-145 psi air supply, and NEMA L6-20P plug.

The Rotary R1200 Tire Changer is a premium, leverless tire-changing powerhouse equipped with variable speed control and advanced safety features. Built to handle tough, high-demand applications, this tire changer is an essential tool for shops needing to service complex tire and wheel configurations quickly and safely.
