Sale!

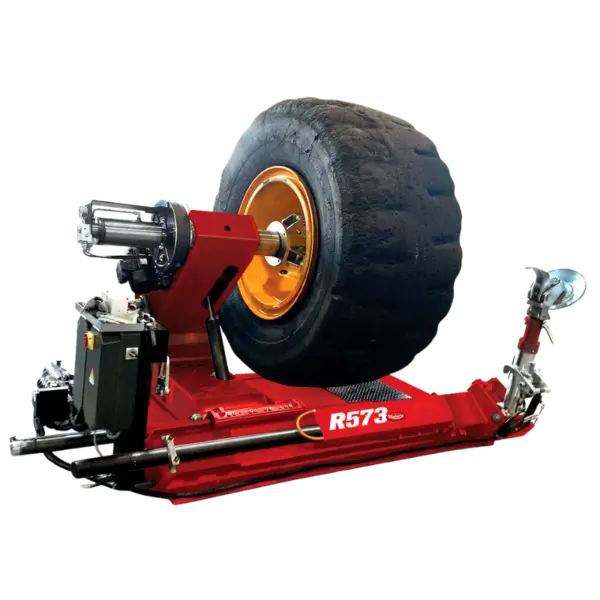

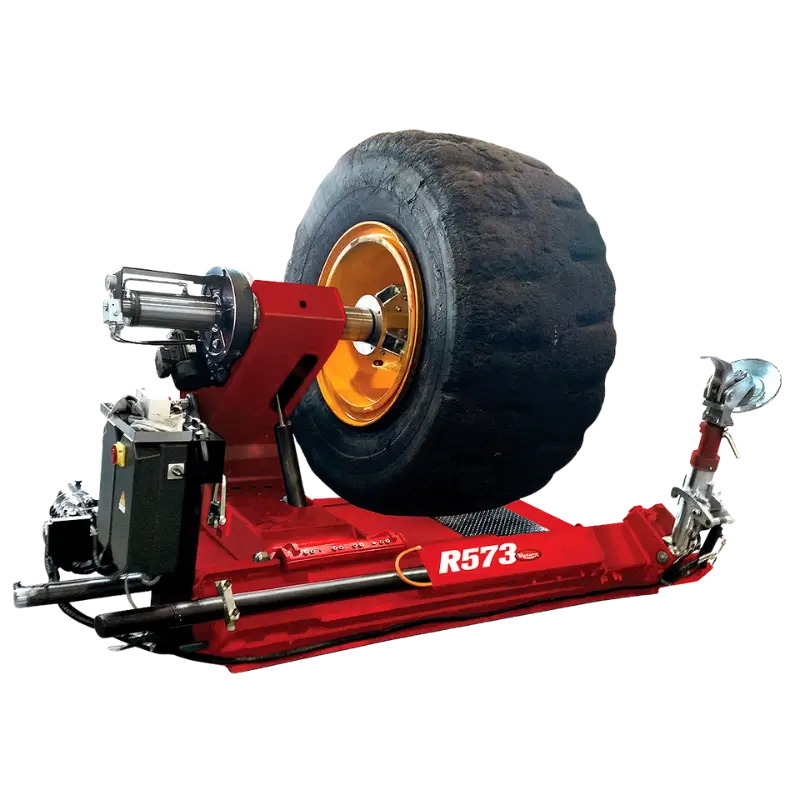

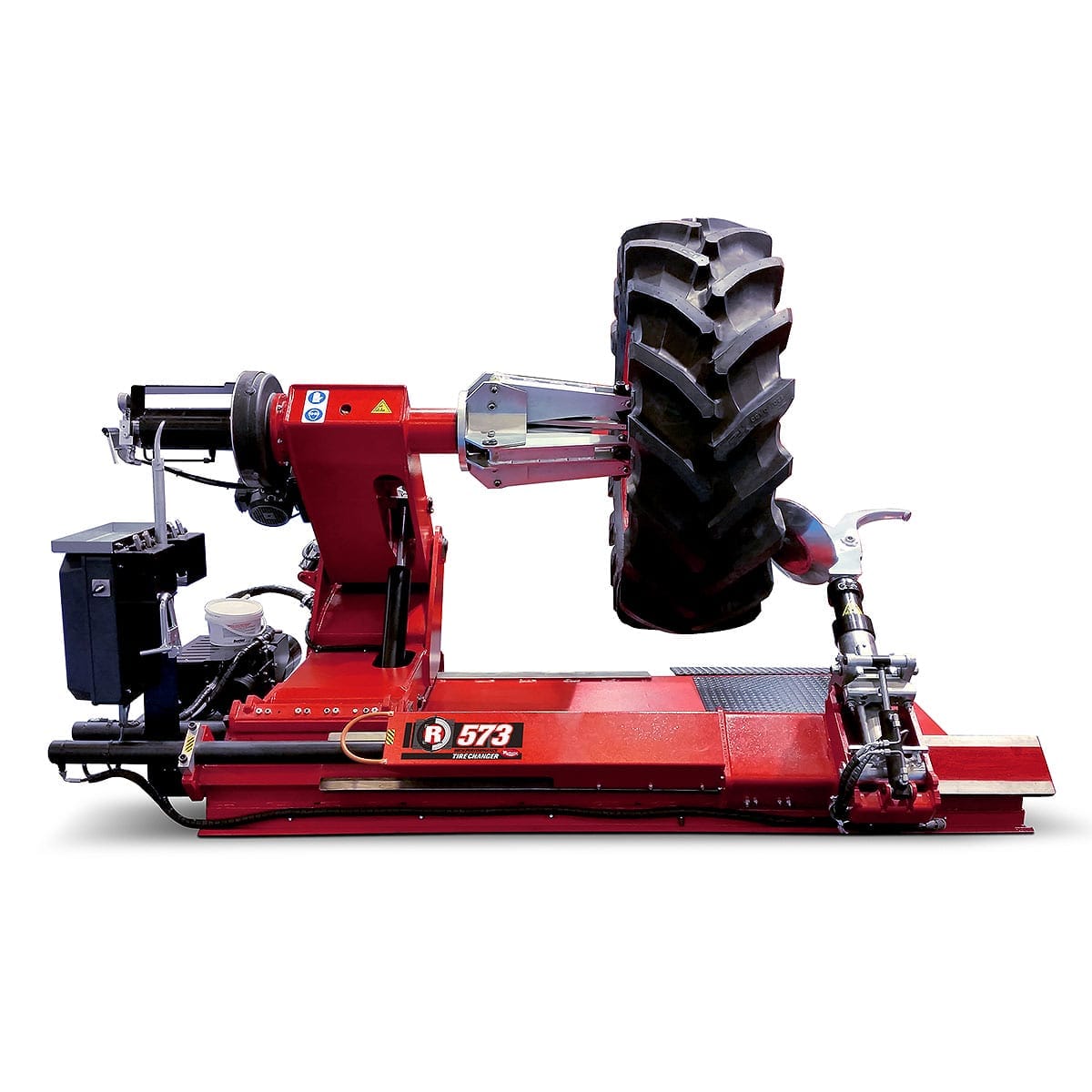

Rotary R573 heavy duty tire changer for trucks, agricultural, and earthmoving vehicles with double speed rotation and high bead breaking force
Rotary® Tire Changer – R573 | Extreme Heavy-Duty - Image 2
Rotary R573 heavy duty tire changer for trucks, agricultural, and earthmoving vehicles with double speed rotation and high bead breaking force
SKU: RWC73.17B Categories: , Tag: Brand:

Rotary® Tire Changer – R573 | Extreme Heavy-Duty

Original price was: $66,356.00.Current price is: $44,767.00.EARN 44,767 POINTS!

The Rotary R573 Heavy Duty Tire Changer is a universal tire changer designed for extreme wheel dimensions. Built for trucks, agricultural, and earthmoving vehicles, this electrohydraulic machine features a high bead breaking force, making tire mounting and demounting effortless. Includes console cable control, double-speed rotation, quick-lock manual tool, and clamp for earthmoving wheels.

  • Console cable control unit with a metal sheath
  • Double speed table rotation
  • Quick locking manual rotation tool
  • B530800 long bead lifting lever
  • VSG108A25 / clamp for earthmoving wheels
  • Tire paste lubricant and brush

Brochure

- +

The Rotary R573 Heavy Duty Tire Changer is a universal, high-capacity machine designed to handle extreme wheel dimensions. Perfect for trucks, agricultural equipment, and earthmoving vehicles, this electrohydraulic tire changer delivers a powerful bead-breaking force, making mounting and demounting easier. With multiple adjustable guides and an electro-brake, it allows instant stopping to prevent tire damage, enhancing safety.

This model features a console cable control unit with a durable metal sheath and a portable wired stand for easy rotational control. Its double-speed rotation table and quick-locking manual tool streamline tire handling. The included long bead lifting lever improves access for larger tires. The R573 accommodates wheel diameters from 11″ to 60″ and can handle tires up to 106″ in diameter and 69″ in width, depending on offset.

Key Features of the Rotary R573 Heavy Duty Tire Changer

  • Electrohydraulic Power: Ideal for heavy-duty tires, providing powerful bead-breaking force.
  • Double-Speed Rotation Table: Adjustable speeds for safe and efficient tire handling.
  • Portable Wired Control Stand: Offers easy, precise control during operation.
  • Versatile Tire Compatibility: Fits tire sizes from 11″ to 60″ in diameter, with optional adapters available.
  • High-Capacity Design: Supports tire diameters up to 106″ and widths up to 69″.

Additional Specifications

  • Oversized Chucking Dimension: Supports large tires without interference. Handles wheels up to 50″ without extensions or up to 60″ with the VSG108A39 adapter set.
  • Includes: Tub mounting paste with brush and VSG108A12 aluminum adapter.
  • Power Requirements: Operates on a 220V, 3-phase, 60 Hz power supply.
  • Special Order Requirement: Available by special order, with a lead time of 14-16 weeks.

The Rotary R573 Heavy Duty Tire Changer is an essential tool for any commercial or industrial tire service provider. Built for strength and precision, this tire changer increases efficiency and reduces downtime. Its electrohydraulic power, versatile control options, and reliable bead-breaking force make it ideal for servicing large, challenging tires. Equip your shop with the Rotary R573 Heavy Duty Tire Changer to deliver safe, reliable service on heavy-duty vehicles.

Warranty Summary

All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner.  Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account.  This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship (“Warrantable Failure”). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force major events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.

More Information: https://rotarylift.com/warranty/

Contact Forward Lift® For Warranty Claims and Questions: 800-445-5438

Chucking Unit Rotation Motor

3 Hp / 2.2 kW

Hydraulic Drive Unit Motor

3.35 Hp / 2.5 kW

Rim Diameter

11"-50", With Optional G108A39: 51"-60"

Maximum Tire Diameter

106"

Maximum Tire Width

69"

Chuck Rotation Speed (rev/min)

1 – 5 – 10

Power Supply

220v / 3Ø / 60 Hz

Reviews

There are no reviews yet.

Be the first to review “Rotary® Tire Changer – R573 | Extreme Heavy-Duty”
