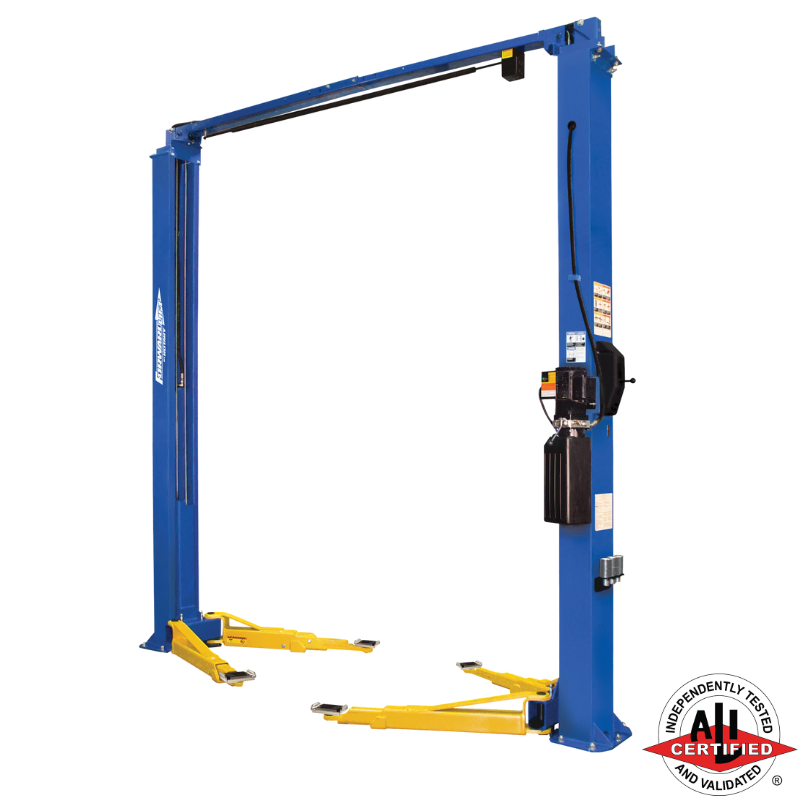

Forward Lift F10 2 post car lift with overhead bar and asymmetrical arms, ALI certified

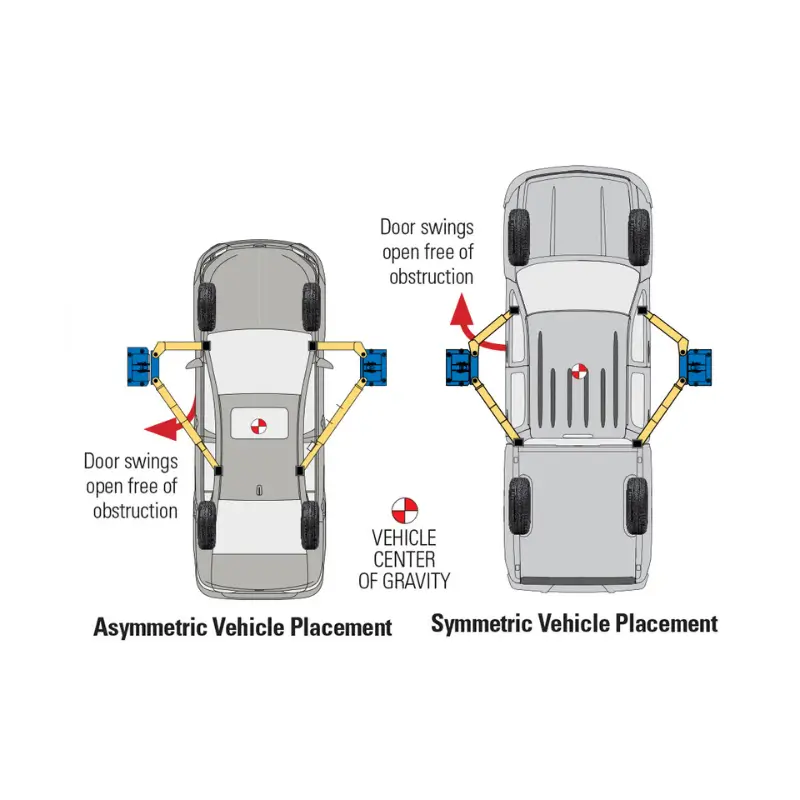

Diagram illustrating asymmetric and symmetric vehicle placement on a two-post lift, showing door swing clearance and vehicle center of gravity.
Forward Lift F10 2 post car lift with overhead bar and asymmetrical arms, ALI certified
Diagram illustrating asymmetric and symmetric vehicle placement on a two-post lift, showing door swing clearance and vehicle center of gravity.
SKU: F10N500MBK Categories: , Tags: , Brand:

Forward Lift® F10 | Symmetrical Two Post Lift

Original price was: $8,395.00.Current price is: $5,452.00.EARN 5,452 POINTS!

The F10 (10,000-pound capacity) two post lift is perfect for raising most passenger cars, trucks, and vans. It features frame-engaging rubber-padded truck adapters with multiple adapter extensions, enabling technicians to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.

ADDITIONAL FEATURES:

  • 10,000 lbs. capacity for raising most passenger cars, trucks and vans.
  • Third party tested by ETL and approved by ALI.
  • 3-stage front and 2-stage rear arms
  • Adapter storage bracket kit
  • Hydraulic cylinders in each column:
    • Direct pull lifting technology
    • Top mounted
    • Full stroke
    • Cylinder rod concealed inside carriage

Brochure

- +

The Forward Lift F10 2 Post Car Lift is an ALI Gold Certified, high-performance lifting solution, ideal for automotive shops that handle a broad range of vehicles. With its 10,000 lb. lifting capacity, this two-post lift is built to accommodate everything from compact cars and SUVs to light-duty trucks, making it indispensable for both routine maintenance and complex repairs. Designed for reliability, safety, and ease of use, the F10 increases technician productivity and enables shops to deliver exceptional service.

ALI Gold Certified for Safety and Quality Assurance

As an ALI (Automotive Lift Institute) Gold Certified product, this 2 post car lift meets the highest safety and performance standards in the industry. This certification assures shops and customers alike that the F10 has undergone rigorous testing and meets strict safety requirements, adding an extra layer of confidence to each lift operation. ALI certification highlights Forward Lift’s commitment to quality, making the F10 a trustworthy investment.

10,000 lb. Lifting Capacity for Broad Vehicle Range

With a powerful 10,000 lb. lifting capacity, the Forward Lift F10 2 Post Car Lift supports a wide variety of vehicles, including cars, SUVs, and light-duty trucks. This versatility allows technicians to take on a diverse set of jobs with confidence, boosting shop efficiency and service capabilities. Thanks to its robust lifting power, the F10 proves to be a highly adaptable asset in any professional automotive shop.

Durable Construction for Reliable, Long-Term Use

Forward Lift constructed the F10 from high-quality materials to withstand the demands of busy service environments. Its durable frame and reinforced structure provide stability and reliable performance, allowing technicians to rely on it daily. Additionally, the F10’s rugged design minimizes maintenance needs, reducing downtime and enabling shops to maintain a smooth, efficient workflow. For shops focused on long-term performance, the F10 is a wise choice.

Enhanced Safety Features for Secure Operation

The F10 2 Post car Lift includes essential safety features that protect both technicians and vehicles. Equipped with automatic arm restraints and a secure locking system, the lift maintains vehicle stability while lifted. This focus on safety, combined with ALI certification, assures technicians and customers of the quality and reliability of each operation.

User-Friendly Design for Streamlined Workflow

Designed with technician convenience in mind, the Forward Lift F10 2 post car lift incorporates features that simplify each operation. Its symmetrical arm design allows technicians to position vehicles quickly and accurately for balanced lifting. Moreover, the open-top design offers easy access to vehicle components from multiple angles, resulting in faster service times. This user-friendly design optimizes workflow, allowing teams to complete more jobs throughout the day.

Elevate Shop Capabilities with the Forward Lift F10 Two-Post Lift

For shops focused on safety, versatility, and efficiency, the ALI Gold Certified Forward Lift F10 Two-Post Lift is a smart addition. With its certified high lifting capacity, durable construction, and user-friendly features, this lift empowers technicians to provide high-quality service across a wide range of vehicles. Equip your shop with the F10 to increase productivity, enhance workflow, and deliver dependable, certified service to every customer.



The F10 (10,000-pound capacity) two post lift is perfect for raising most passenger cars, trucks, and vans. It features frame-engaging rubber-padded truck adapters with multiple adapter extensions, enabling technicians to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″. <p class="features"><strong>ADDITIONAL FEATURES:</strong></p> <ul> <li>10,000 lbs. capacity for raising most passenger cars, trucks and vans.</li> <li>Third party tested by ETL and approved by ALI.</li> <li>3-stage front and 2-stage rear arms</li> <li>Adapter storage bracket kit</li> <li>Hydraulic cylinders in each column: <ul> <li>Direct pull lifting technology</li> <li>Top mounted</li> <li>Full stroke</li> <li>Cylinder rod concealed inside carriage</li> </ul> </li> </ul> <p class="extra-space"><a class="red-btn" href="https://shopequipmentlift.com/wp-content/uploads/2024/04/Forward-F10.CUTSHEET.2023.06.pdf" target="_blank" rel="noopener">Brochure</a></p>
ALI GOLD CERTIFIED

The F10 (10,000-pound capacity) two post lift is perfect for raising most passenger cars, trucks, and vans. It features frame-engaging rubber-padded truck adapters with multiple adapter extensions, enabling technicians to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″. <p class="features"><strong>ADDITIONAL FEATURES:</strong></p> <ul> <li>10,000 lbs. capacity for raising most passenger cars, trucks and vans.</li> <li>Third party tested by ETL and approved by ALI.</li> <li>3-stage front and 2-stage rear arms</li> <li>Adapter storage bracket kit</li> <li>Hydraulic cylinders in each column: <ul> <li>Direct pull lifting technology</li> <li>Top mounted</li> <li>Full stroke</li> <li>Cylinder rod concealed inside carriage</li> </ul> </li> </ul> <p class="extra-space"><a class="red-btn" href="https://shopequipmentlift.com/wp-content/uploads/2024/04/Forward-F10.CUTSHEET.2023.06.pdf" target="_blank" rel="noopener">Brochure</a></p>

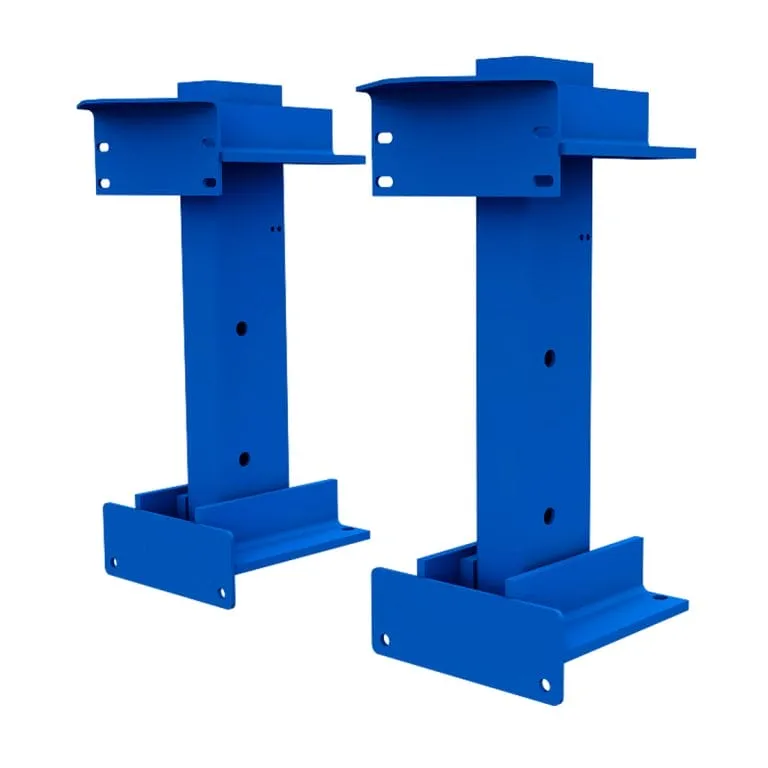

T100295 Extended Height Kit

The column extension kit is used to add an additional 2 feet (609.6 mm) to the top of the standard lift. This kit includes an extended length hose, return line, and cables to accommodate the extended height. Existing hardware included with the lift is used to attach the extensions.

The F10 (10,000-pound capacity) two post lift is perfect for raising most passenger cars, trucks, and vans. It features frame-engaging rubber-padded truck adapters with multiple adapter extensions, enabling technicians to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″. <p class="features"><strong>ADDITIONAL FEATURES:</strong></p> <ul> <li>10,000 lbs. capacity for raising most passenger cars, trucks and vans.</li> <li>Third party tested by ETL and approved by ALI.</li> <li>3-stage front and 2-stage rear arms</li> <li>Adapter storage bracket kit</li> <li>Hydraulic cylinders in each column: <ul> <li>Direct pull lifting technology</li> <li>Top mounted</li> <li>Full stroke</li> <li>Cylinder rod concealed inside carriage</li> </ul> </li> </ul> <p class="extra-space"><a class="red-btn" href="https://shopequipmentlift.com/wp-content/uploads/2024/04/Forward-F10.CUTSHEET.2023.06.pdf" target="_blank" rel="noopener">Brochure</a></p>

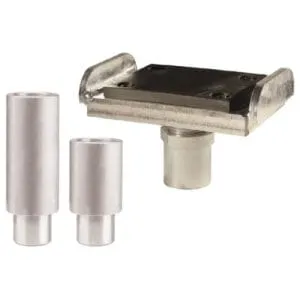

INCLUDES LOW-PROFILE THREADED ADAPTERS AND (4 each) ADAPTER EXTENSIONS AT 3.5″ and 5″

ADDITIONAL FEATURES:

  • Symmetrical column design
  • Versatile 3-stage front and 2-stage rear arms
  • Top mounted Direct-Pull lifting technology
  • Cylinder rod concealed inside carriage
  • Adjustable width options
  • Optional extended height kit adds 2’
  • Single point lock release
  • Powder coated finish
  • Includes adapter storage bracket

Warranty Summary

All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

  • Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
  • Normal maintenance and adjustments as required by the owner’s manual.
  • Failure to follow installation and operation instructions or user neglect or abuse.
  • Damage to components incurred during transportation or unloading.
  • Any lift that has been altered from the original design or improperly repaired.
  • Cosmetic defects or blemishes that do not interfere with functionality of the lift.
  • Damage caused by improper lifting or overloading.
  • Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.

More Information: https://www.forwardlift.com/warranty/
Contact Forward Lift® For Warranty Claims and Questions: 800-423-1722

Capacity

10,000 lbs

Max Rise

76 1/4" With 5" Extension

Overall Height

141", 165" (Optional Extension)

Overall Width

129", 137" (Optional)

Drive Through Clearance

105" (Optional), 99"

Overhead Switch Height

137 1/8"

Front Arm Reach

24 1/2" (Min), 58" (Max)

Rear Arm Reach

36" (Min), 58" (Max)

Minimum Adapter Height

3 3/4" Without Extension

Max Adapter Height

8 3/4" With 5" Extension

Width Inside Columns

109", 115" (Optional)

Voltage

17 amps, 208/230v

Motor

2HP, 60Hz, Single Phase

Ceiling Height Required

12 ft

Lift Color Options

Blue
