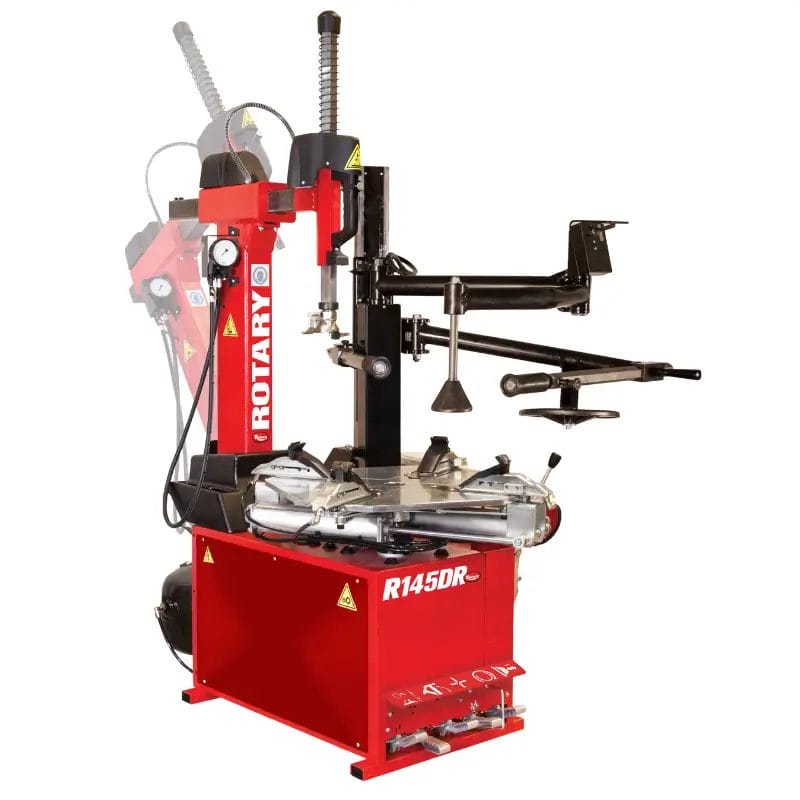

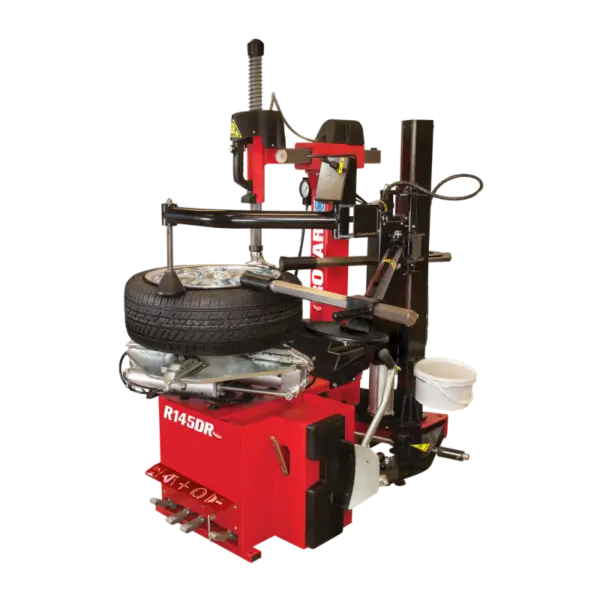

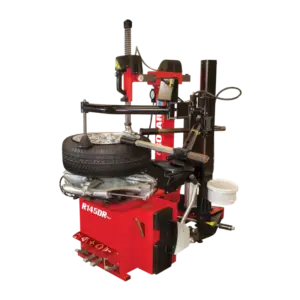

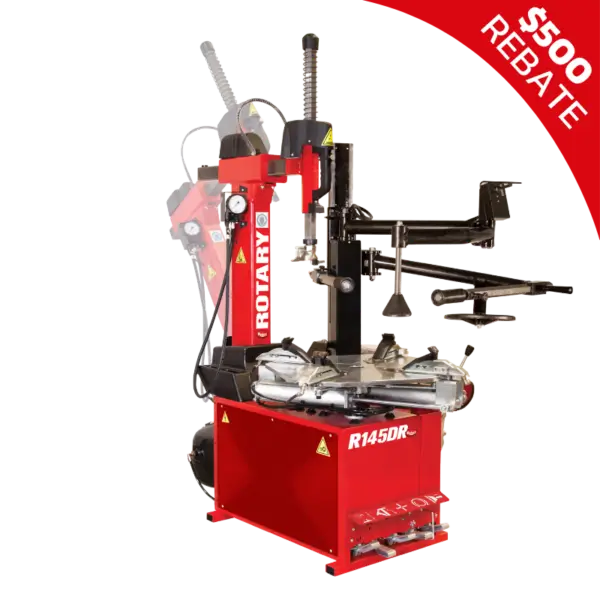

Rotary® Tire Changer – R145DR | Tilt Back – High Performance Tire Changer
Original price was: $15,778.00.$10,335.00Current price is: $10,335.00.
The Rotary R145DR is an advanced automatic tire changer equipped with an electric motor inverter, allowing you to control the chucking table’s rotation speed and reduce bead stress to prevent tire damage. Ideal for larger, wide tires, it features the Fast Inflation (FI) configuration for quick inflation of tubeless tires.
- Automatic Tire Changer
- FI Configuration (quick inflation for tubeless tires)
- 220V power-driven motor
- Invemotor 0-16 Variable Speed Control
- Designed for Large and Wide Tires
- Shown with standard helper included
- Hand operated bead breaker handle
The Rotary R145 Tire Changer is built for performance, featuring a powerful automatic system designed to handle low-profile and wide tires with precision. Equipped with an innovative electric motor inverter, the R145DR allows users to regulate the rotation speed of the chucking table, minimizing stress on the bead and preventing tire damage. This high-performance machine is specifically tailored for large, wide tires and is outfitted with the Fast Inflation (FI) configuration, streamlining inflation for tubeless tires.
The R145DR is engineered with a pneumatically tilting column to ensure peak rigidity during use, providing consistent and reliable tire servicing. This model also features an extra-wide heavy-duty frame and a table inflation system, enhancing its durability and efficiency in busy tire shops. The integrated helper arm comes pre-installed, making mounting and demounting even easier.
Additional Features of the Rotary R145 Tire Changer
- Variable Speed Control (VSC): Adjusts speed to reduce stress on the tire bead, ensuring safe mounting and demounting.
- Pneumatically Tilting Column: Adds stability and rigidity, enhancing the machine’s performance with larger tires.
- Hand-Operated Double-Acting Bead Breaker Cylinder: Offers greater control and ease in breaking beads.
- Clamping Range: Inside clamping from 12″ to 28.5″ and outside clamping from 10″ to 26″.
- Heavy-Duty Frame and Table Inflation System: Provides durability and power for high-volume usage.
- Helper Arm: Included and installed for enhanced ease and efficiency during tire changing.
Included with the R145 Tire Changer:
- (1) Tub of tire paste with brush
- (4) Clamp protectors
- (1) Bead breaker blade protector
- (2) Tool protection kits
- Bead lever and NEMA L6-20P plug
- Plastic mount/demount head
Site Requirements:
- Power Requirements: Operates on a 220V, 1-phase, 20-amp power supply.
- Air Supply Requirements: Requires 115-145 psi air supply for optimal performance.
The Rotary R145 Tire Changer is a premium choice for tire professionals, combining power, efficiency, and advanced features in a single machine. Its variable speed control, FI configuration, and durable frame make it perfect for handling challenging tires in high-demand environments. With added safety and convenience features, the R145DR delivers reliable performance for any busy tire shop.
| Self-Centering Lock: External | 10" – 26" |
|---|---|
| Self-Centering Lock: Internal | 12" – 28.5" |
| Tool Working Span | 8" – 32" |
| Maximum Tire Diameter | 45″ |
| Maximum Tire Width | 17" |
| Bead Breaker Cylinder Power at 145psi | 6,745 lbs |
| Power Supply | 220v / 1Ø / 60 Hz |
Limited Warranty Statement for Wheel Service Products
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner.
Important: The warranty period begins on the invoice date to an authorized Distributor, Purchaser, or Account. This date can be adjusted by submitting to VSG Customer Service a Warranty Activation Form indicating the installation date or proof of retail purchase date.
This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Warranty for Accessories
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. Normal wear and tear of parts is not covered.
Warranty Conditions
- Warrantable Failures: VSG will, at its option, repair or replace any part that has failed due to a defect in material or workmanship.
- VSG may require parts to be returned for inspection to determine warrantability.
- This warranty does not cover:
- Normal maintenance or adjustments, including routine calibrations.
- Damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, or carelessness of operation.
- Force majeure events.
- Unauthorized repairs or alterations.
Warranty Coverage
| Model/Series | Functional Parts** | Labor Warranty |
|---|---|---|
| WHEEL SERVICE | 3 Years | 1 Year |
Exceptions: Calibrations, routine maintenance, and alterations are not covered under warranty.
Exclusions:
- Paint Defects Due to External Influences: Accidental damage, climate, thermal or chemical exposure, industrial pollution, insufficient care or maintenance.
- Air-Powered Items: Damage caused by external fluids or moisture.
Limitation of Liability
This warranty is exclusive of all other expressed or implied warranties, including merchantability or fitness for a particular purpose. The remedies described are exclusive, and VSG shall not be liable for any special, consequential, or incidental damages of any kind, including but not limited to delays or breach of warranty.
This warranty is governed by the laws of the State of Indiana and subject to the exclusive jurisdiction of courts in Jefferson County, Indiana.
