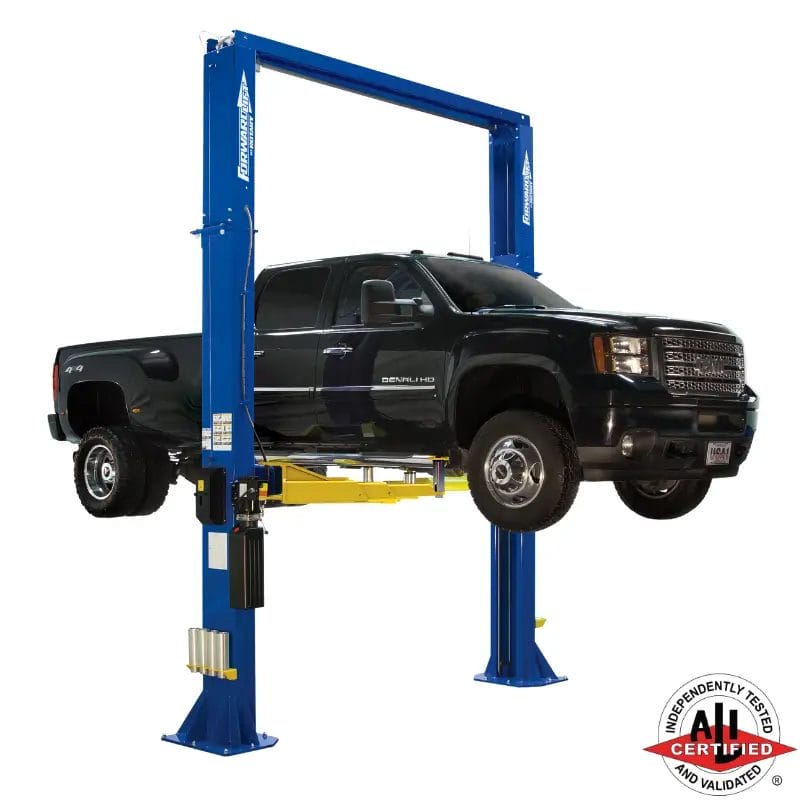

Forward Lift® DP18PRO | 3 Stage Symmetric Heavy Duty Two Post Lift
$21,158.00 – $22,024.00

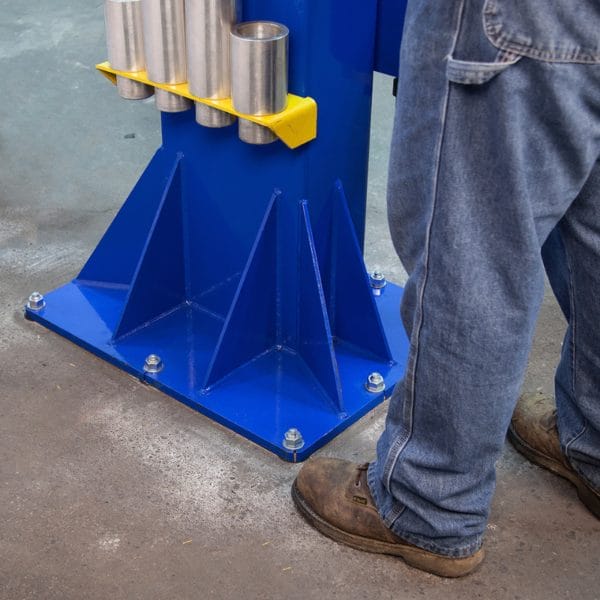

The DP18Pro is constructed of high-strength, heavy gauge steel columns. Large gusseting on a substantial base plate foundation provides the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start servicing work trucks, vans, or small buses, along with everything else that rolls through the door.
FEATURES:
- 18,000 lbs. capacity for lifting most trucks and vans.
- Features symmetrical column design
- Direct-Pull Lifting – high efficiency, low maintenance technology
- Closed loop hydraulic system – protect against hydraulic contamination
- Powder coat paint is more durable than conventional coatings
- Third party tested and certified by ALI
- Padded shut-off bar
- Low profile arms and truck adapters
- Single point release lock at operations center
ALI GOLD CERTIFIED
TRUCK ADAPTER EXTENSIONS:
The DP18Pro comes with eight high-strength, aircraft-grade aluminum truck adapter extensions. Four 5” and four 10” adapters that allow you to lift a wide range of vehicles. Because they’re made of aluminum, you’ll be able to place and maneuver them without strain and they have a convenient column bracket for easy storage.
ARMS: Forward’s heavy-duty two-post DP18Pro offers three-stage arms that can easily be extended and retracted while lying on the floor spotting a vehicle. Couple that with the light adapter extensions and you win the spotting large vehicle battle!
3-STAGE ARMS with heavy-duty reinforced gusseting
- Extended and retracted from 61” to 30”
- 5 1/2” minimum adapter height from floor

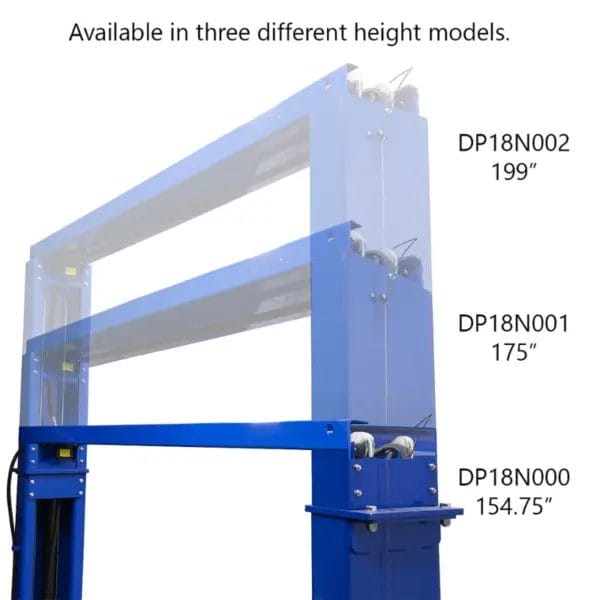

Extended Height Model Options:
- DP18PN000 (lowest height) – the overhead cross member mounts directly to the column without a column extension to fit a 155 ¾” (12’-11 ¾”) ceiling height.
- DP18PN001 (standard height) – fits a 176” (14’-8”) ceiling height.
- DP18PN002 (extended height) – fits a 200” (16’-8”) ceiling height.
ADDITIONAL FEATURES:
- Symmetrical column design
- 3-stage front and rear arms to service a wider range of vehicles
- Three height configuration model for most ceiling heights
- Top mounted direct pull technology
- Cylinder rod concealed inside carriage
- Overhead cable equalization
- Single point lock release
- Spring operated arm restraints
- Includes adapter storage
- Durable powder-coated finish
| Column Extensions | Extended Height, Low Ceiling, Standard Height |
|---|---|
| Capacity | 18,000 lbs |
| Max Rise | 83 1/4" With 10" Extension |
| Overall Height | 154 3/4" (Low Ceiling), 175" (Standard Height), 199" (Extended Height) |
| Height to Shut-Off | 147 1/4" (Low Ceiling), 167 1/4" (Standard Height), 191 1/4" (Extended Height) |
| Minimum Ceiling Height | 200" (Extended Height), 155 3/4" (Low Ceiling), 176" (Standard Height) |
| Overall Width | 154 3/8" |
| Width Inside Columns | 119 5/8" |
| Drive Through Clearance | 108 1/4" |
| pa_arm-reach-min-max | 444, 445 |
| Minimum Adapter Height | 5 1/2" |
| Voltage | 20 amps, 208/230v |
| Motor | Single Phase, 2HP |
| Lift Color Options | Blue, Red |
