Rotary Lift and Forward Lift stainless steel turning radius gauge kit TT1001KIT
Rotary Lift and Forward Lift stainless steel turning radius gauge kit TT1001KIT
SKU: TT1001KIT Categories: , , , Tags: , , Brand: ,

Rotary Lift® | Forward Lift® Stainless Steel Turning Radius Gauge Kit | TT1001KIT

Original price was: $3,769.00.Current price is: $2,423.00.EARN 2,423 POINTS!

Turning Radius Gauge Kit (TT1001KIT) for precise wheel alignment measurements on Rotary Lift® and Forward Lift® systems—also compatible with Direct Lift® and similar alignment/service lifts. Built from heavy-duty stainless steel to resist rust and daily wear, this kit includes (2) 3,000 lb turnplates (6,000 lb per pair) plus (4) retaining bars to accurately measure front wheel steering angles on 4-post and scissor lifts.

Talk to an expert

- +

Rotary Lift® | Forward Lift® Stainless Steel Turning Radius Gauge Kit

The Rotary TT1001KIT (often branded under Forward Lift®) is a heavy-duty stainless steel turning radius gauge kit used to perform precise vehicle wheel alignments. Designed for 4-post and scissor lifts, this kit helps technicians measure front wheel steering/turning angles accurately—an essential step for consistent alignment results, improved handling, and reduced uneven tire wear.

What’s included

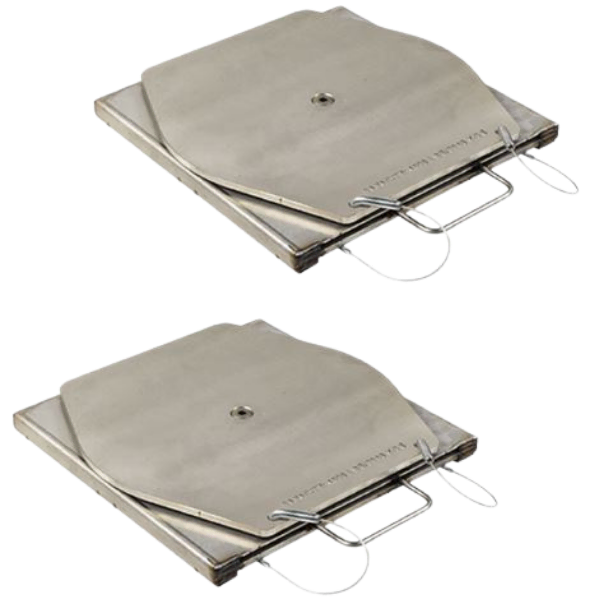

  • (2) Stainless steel turning radius gauges / turnplates
  • (4) Retaining bars

Key specs

  • Capacity: 3,000 lbs per gauge / 6,000 lbs per pair
  • Material: Stainless steel for rust and wear resistance
  • Approx. dimensions: 14″ x 14″ x 1.5″
  • Lift types: Ideal for 4-post and scissor alignment/service lifts

Compatibility

This kit is designed for use with Rotary Lift® and Forward Lift® equipment and is also compatible with Direct Lift® and similar alignment lifts—making it a smart standardization part for shops running mixed-bay equipment.

Why TT1001KIT matters

A turning radius gauge set like TT1001KIT is often essential for converting a standard service lift into an alignment-capable rack. With durable stainless construction and shop-ready capacity, it supports repeatable measurements and dependable workflow for alignment service.

Warranty Summary

All Forward Lift products are warranted to the original owner. Forward lifts are warranted for 5 years from invoice date on structural components (columns, arms, runways, and carriages) to be free of defects in material and workmanship. Non-structure items (cylinder, power unit and parts) are warranted for 12 months from invoice date. Forward Lift shall pay for reasonable costs of labor and transportation for replacement of said parts for the first twelve months.

All accessories are warranted for 1 year from invoice date to the original owner (parts only). Optional twenty four month Extended parts warranty (non-structural items) is available upon request at an additional charge. This warranty shall not apply unless the product is installed, operated, used and maintained in accordance with Forward Lift specifications set forth in the installation, operation and maintenance instructions. This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall Forward Lift or any sales agent be liable for any special, consequential or incidental damages of any kind including damages for breach of or delay in performance of the warranty. This warranty shall be governed under the laws of the State of Indiana, and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson. This warranty does not apply to the following:

  • Normal wear and tear items such as cables, sheaves, sliders, plastic and rubber components.
  • Normal maintenance and adjustments as required by the owner’s manual.
  • Failure to follow installation and operation instructions or user neglect or abuse.
  • Damage to components incurred during transportation or unloading.
  • Any lift that has been altered from the original design or improperly repaired.
  • Cosmetic defects or blemishes that do not interfere with functionality of the lift.
  • Damage caused by improper lifting or overloading.
  • Damage caused by corrosion of any kind.

*Specifications subject to change without notice or liability.

More Information: https://www.forwardlift.com/warranty/
Contact Forward Lift® For Warranty Claims and Questions: 800-423-1722
