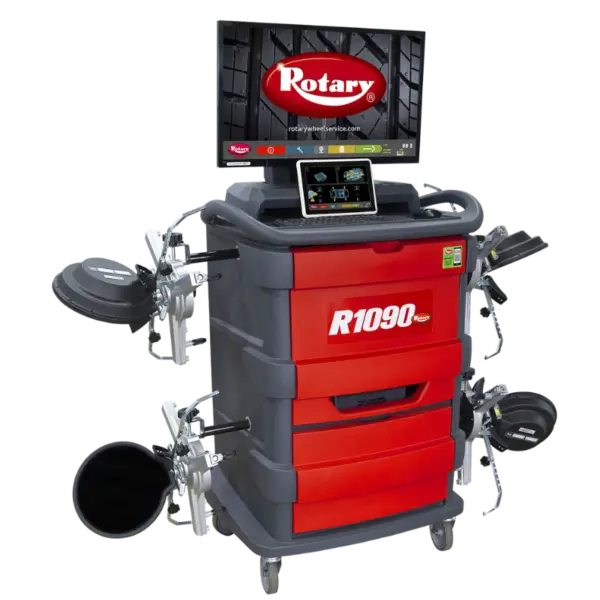

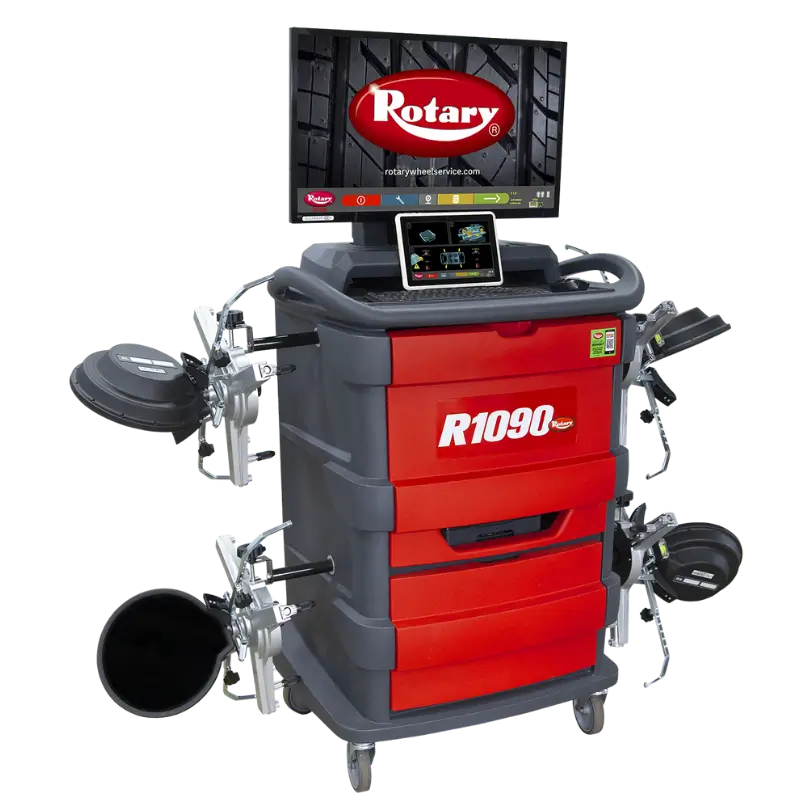

Less of a learning curve to run our software, less space required for the machine in any bay, less total cost involved to start doing alignments yourself. The R1090 Pro 3D is your next alignment system.
HIGH-PERFORMANCE SYSTEM WITH SOLID VISION TECHNOLOGY
Equipped with fixed cameras, tire grabbing clamps, and remote-controlled sensors.
- Automatic positioning of the cameras
- Automatic recognition of the targets
- ADAS ready
FAST AND EASY SETUP
Console or Tablet Operated System – Includes Android Tablet as a REMOTE indicator
Easy to follow alignment process with updated graphics that feature a time saving On Rack Test Drive Program
- Animated instructions
- Easy to read results
- Adjustment Illustrations
- Live adjustments
- Email or print alignment report
The Rotary Wheel Alignment Machine R1090 is a high-precision alignment system crafted to enhance accuracy and efficiency in professional automotive shops. With Rotary’s advanced 3D imaging technology, the R1090 delivers precise alignment measurements, making it ideal for a variety of vehicles, including cars, SUVs, and light trucks. This powerful machine not only improves workflow but also reduces alignment time, ensuring exceptional results and increasing shop productivity.
Precision Alignment with Rotary’s 3D Imaging Technology
Thanks to Rotary’s 3D imaging technology, the wheel alignment machine R1090 captures highly accurate, real-time measurements. This precision allows technicians to detect alignment issues quickly, enabling exact adjustments that improve vehicle handling and extend tire life. As a result, shops can offer services that enhance vehicle performance and reduce long-term tire wear, keeping customers satisfied and returning.
User-Friendly Operation for Faster Service
Rotary designed the R1090’s interface to be user-friendly, allowing technicians to navigate controls and complete alignments with ease. With clear, on-screen instructions and step-by-step guidance, even new users can quickly learn to operate the system. This intuitive setup not only reduces training time but also boosts productivity, enabling shops to handle more vehicles daily without compromising accuracy. Consequently, customer satisfaction increases due to faster, high-quality service.
Durable Rotary Design for Consistent Performance
Built from high-quality materials, the Rotary wheel alignment machine R1090 is engineered to withstand the demands of busy shop environments. Its sturdy construction provides stability and reliable performance, even with frequent use. Additionally, the R1090’s robust design reduces maintenance needs, keeping downtime low and ensuring operations remain smooth. For shops focused on long-term reliability, the R1090 is a wise investment in both quality and efficiency.
Versatile Applications for Various Vehicle Types
The Rotary wheel alignment machine R1090 accommodates a range of vehicles, including compact cars, SUVs, and light trucks. This versatility allows shops to expand service offerings and meet diverse customer needs, all with a single machine. By adapting to different vehicle types, the R1090 not only improves customer satisfaction but also strengthens the shop’s reputation as a comprehensive service provider.
Enhance Efficiency with the Rotary Wheel Alignment Machine R1090
For shops aiming to improve accuracy, speed, and customer service, the Rotary Wheel Alignment Machine R1090 is an invaluable addition. Equipped with 3D imaging technology, a durable design, and an intuitive interface, this machine provides reliable, high-quality alignment services across various vehicle types. Equip your team with the Rotary R1090 to boost productivity, reduce alignment time, and deliver outstanding service for every customer.
ADDITIONAL PRODUCT DETAILS:
- TOWER FREE SYSTEM – Maximize available workspace.
- NO MINIMUM BAY SIZE REQUIRED – No fixed obstacles or obstructions in front of the lift. A portable aligner console can be positioned anywhere for the ultimate convenience.
- NO COMPENSATION OR ROLL BACK* – No physical rolling or pushing of the vehicle to make runout compensation. Automatic and instant 3D target visualization. *FOR MOST VEHICLES
- NO LIMITATIONS – Can be used at any height! No need to dedicate bays for alignment service only. Use the aligner in more than one bay location with optional sensor supports.
- NO INTERRUPTIONS – Perfect transmission signals. Always.
ADDITIONAL FEATURES:
- 32” monitor
- TABLET for REMOTE CONTROL with the ALIGNER CONNECT APP
- ADAS ready
- Extra set of batteries
- Two years of database updates
- 3D Solid state targets with levels
- Clamping arms for 8″-24″ & 19″-36″ tires
- Set of six Dually extensions for wheels, Set of 16 ABS conical tips
- Set of four quick locking clamps
STANDARD EQUIPMENT INCLUDES:
- Brake pedal depressor
- Steering wheel holder
- Cabinet unit with PC, keyboard, printer and automatic battery charger.

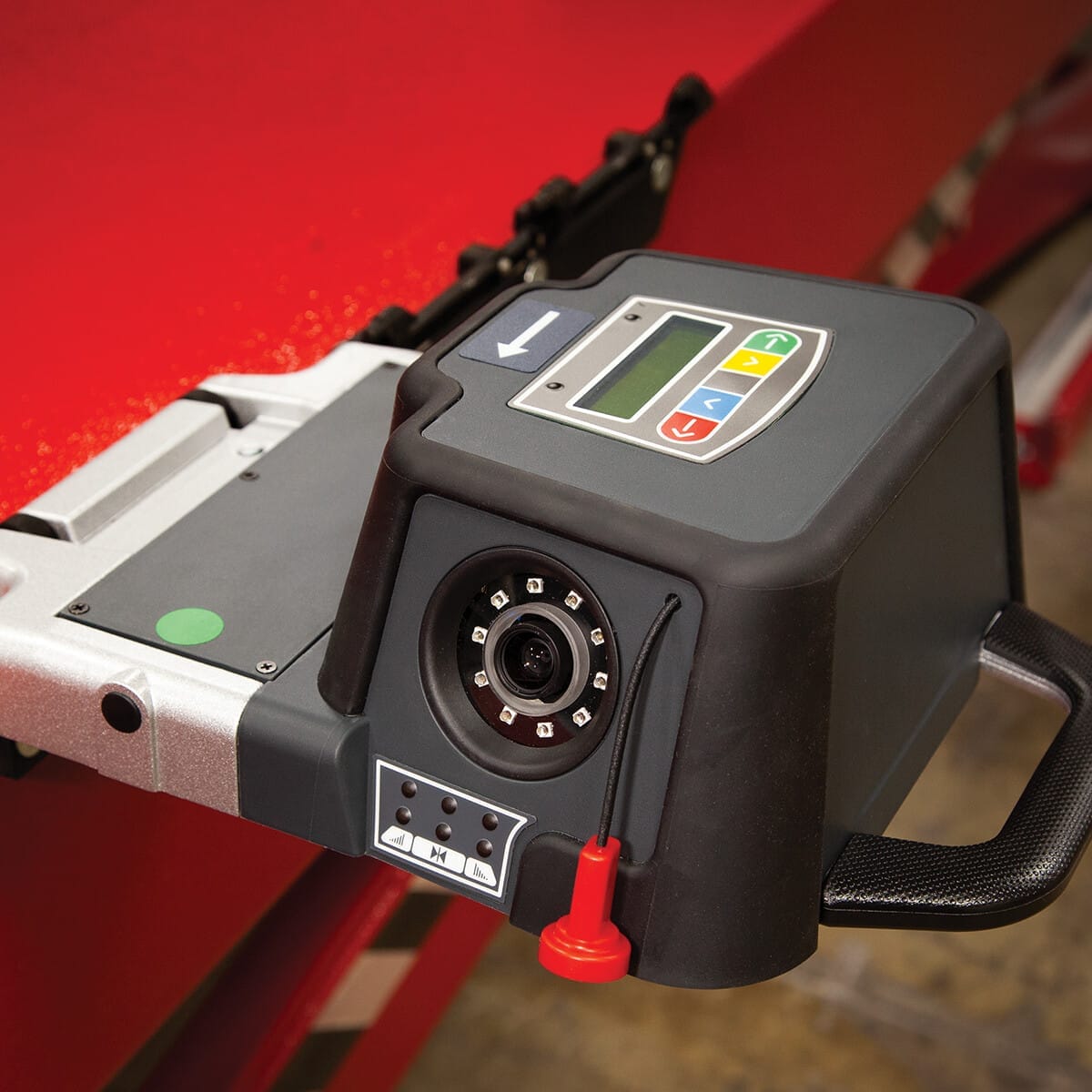

SINGLE SENSOR SUPPORT PROVIDES HEAD POSITION ON RUNWAYS FOR MULTIPLE VEHICLE WHEELBASES
Quick clamp to the lift, this pivoting support avoids damage with obstacles while lowering.

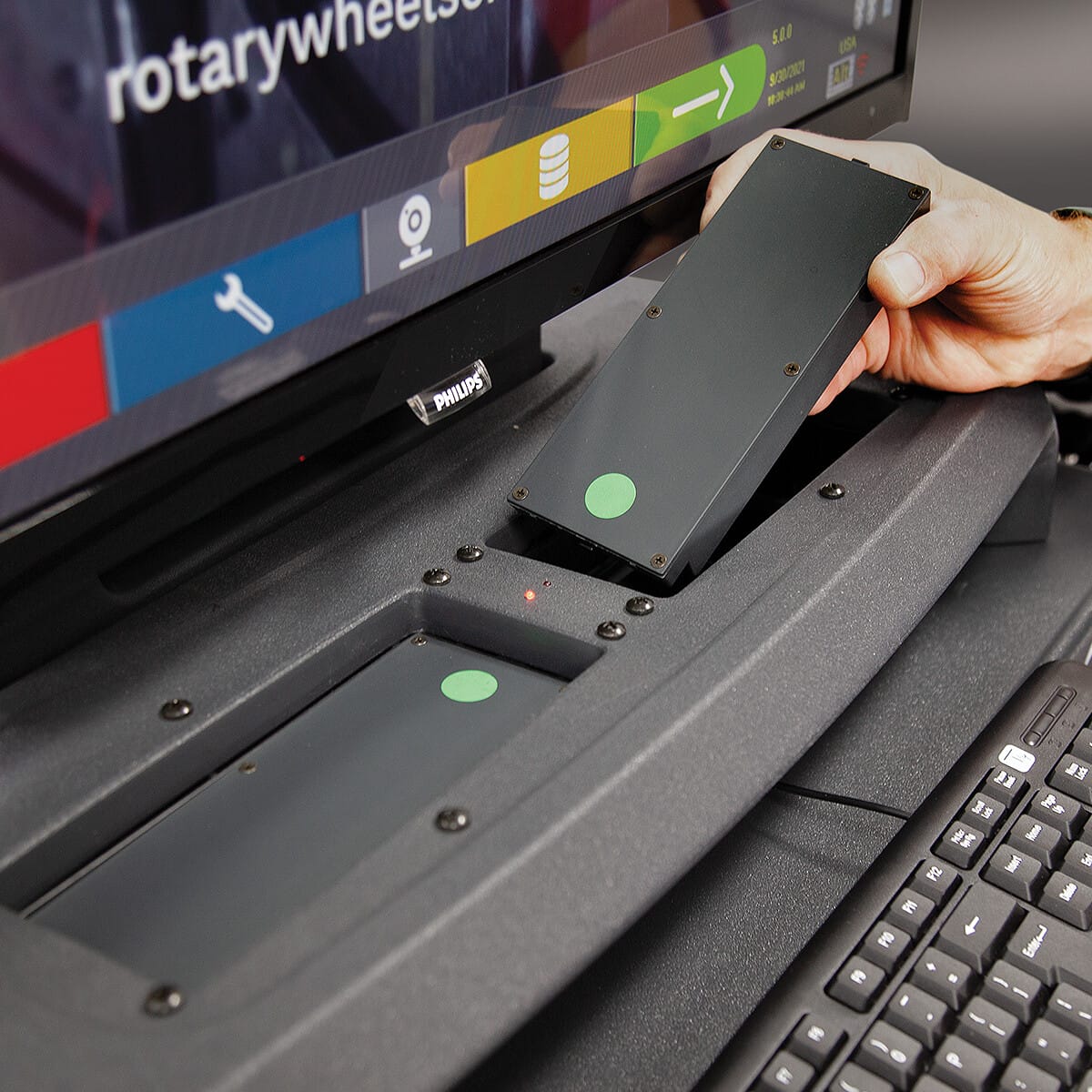

QUICK RELEASE BATTERY CHANGE STATION
Convenient charge station on cabinet unit top. Swap batteries without losing readings. 8-hour battery life allows a full day of work.

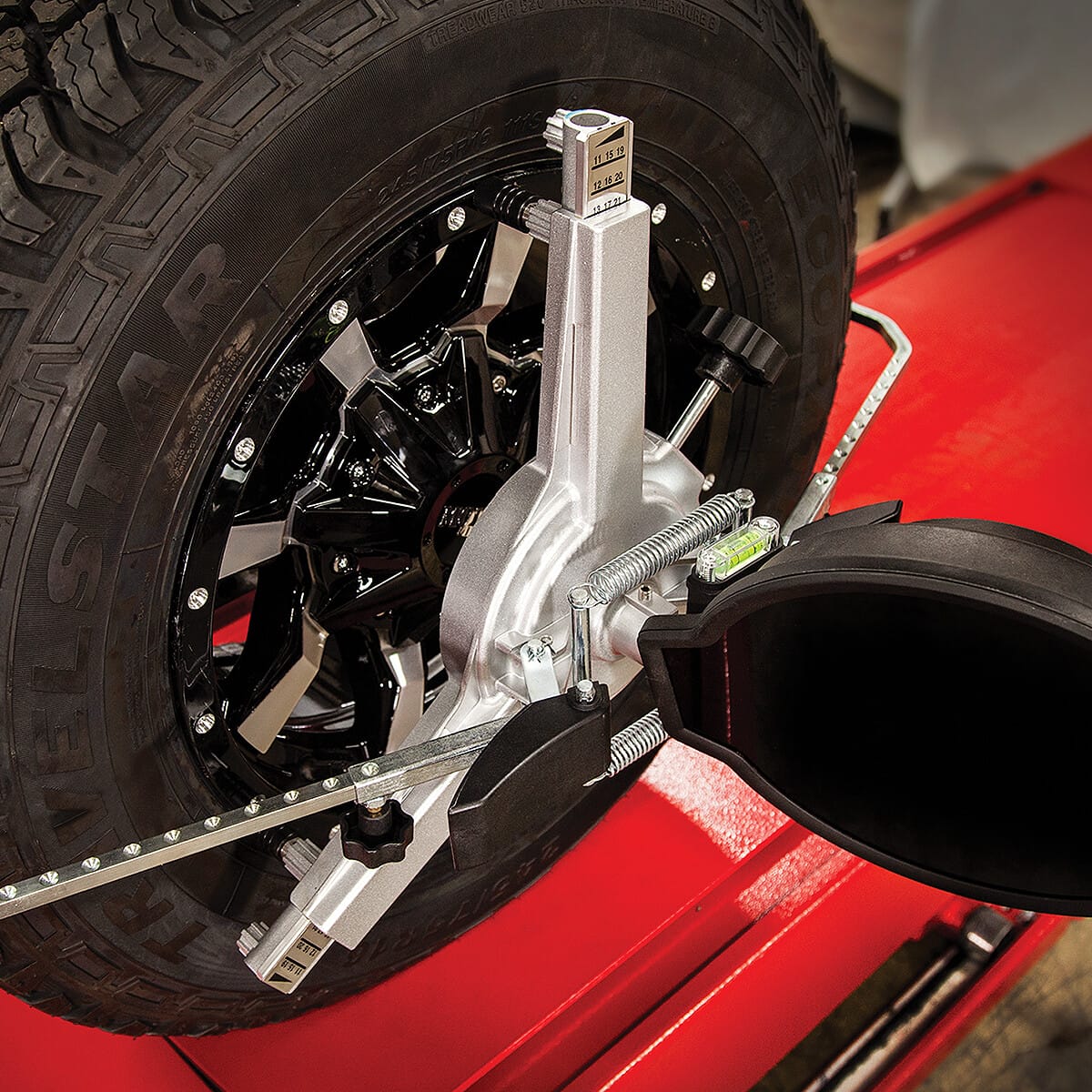

EXCLUSIVE 3DT® TARGETS with Solid Vision Technology

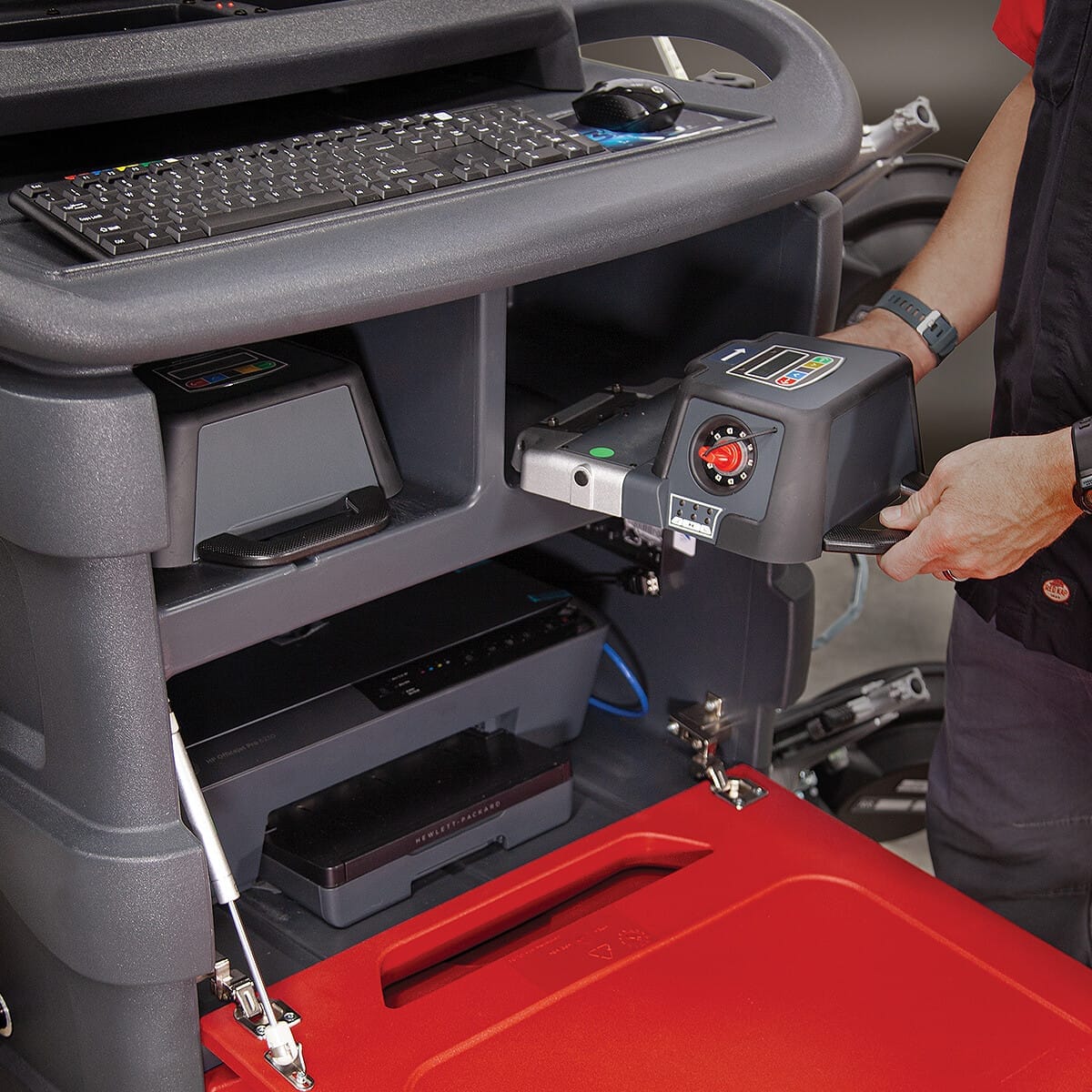

NEW PORTABLE CABINET WITH INCREASED STORAGE.
New portable cabinet with increased storage. Compact size for workshops with limited space.

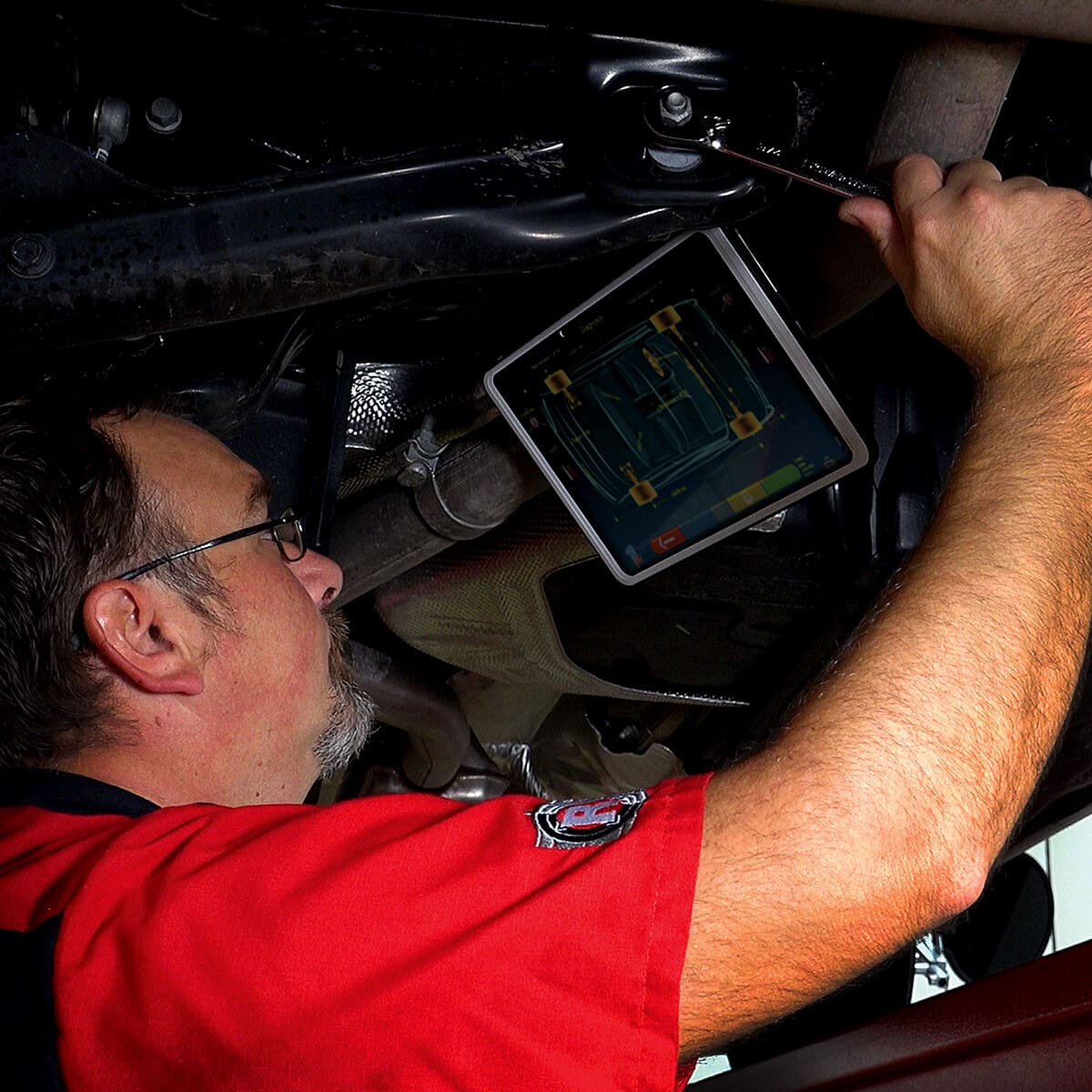

HANDHELD TABLET ALLOWS TECHS TO READ AND MAKE ADJUSTMENTS ANYWHERE IN THE BAY!
Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.

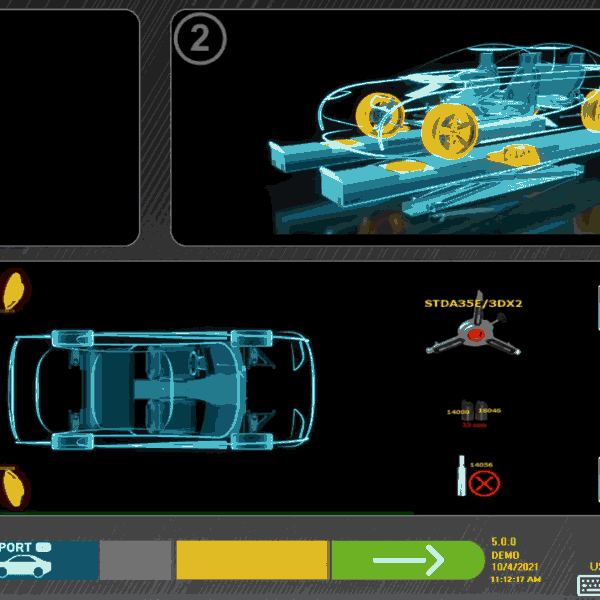

ENHANCED GRAPHIC INTERFACE
Updated animated instructions and graphics guide the alignment process. Includes “Spoiler Program” for lowered vehicles – measures sport and tunes car bodies.
SPECIFICATIONS:
| R1090 Alignment System Technical Data | Accuracy | Measuring Range | Total Measuring Range |
| Front axle | |||
| Total toe | +/- 2’ | +/- 2° | +/- 20° |
| Partial toe | +/- 1′ | +/- 1° | +/- 20′ |
| Set-back | +/- 2’ | +/- 2° | +/- 5° |
| Camber | +/- 2’ | +/- 3° | +/- 10° |
| Caster | +/- 5′ | +/- 10° | +/- 18° |
| King-pin | +/- 5′ | +/- 10° | +/- 18° |
| Rear axle | |||
| Total toe | +/- 2′ | +/- 2° | +/- 20° |
| Partial toe | +/- 1′ | +/- 1° | +/- 20° |
| Set-back | +/- 2′ | +/- 2° | +/- 5° |
| Camber | +/- 2′ | +/- 3° | +/- 10° |
| Thrust angle | +/- 2′ | +/- 2° | +/- 5° |
| Power supply | 110v / 1Ø / 60 Hz | ||
