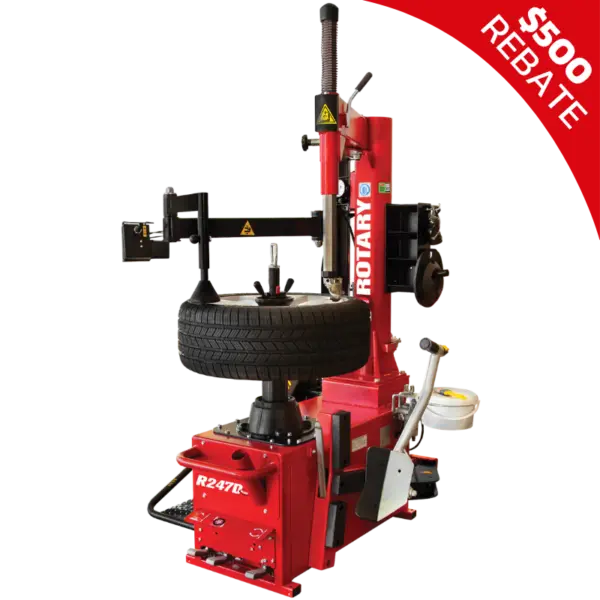

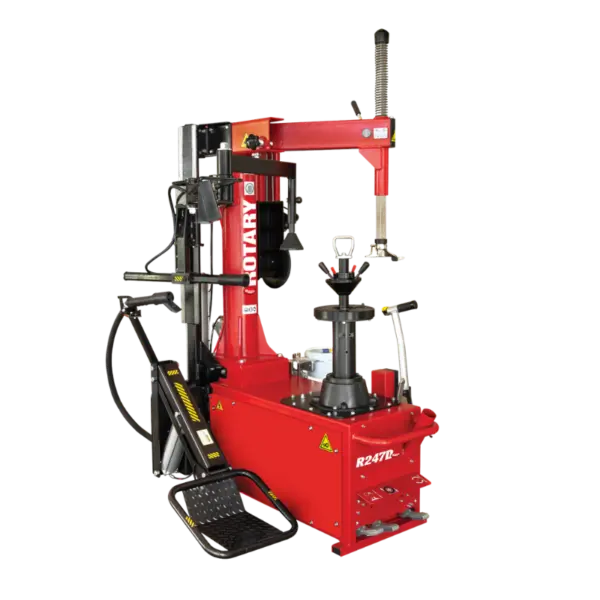

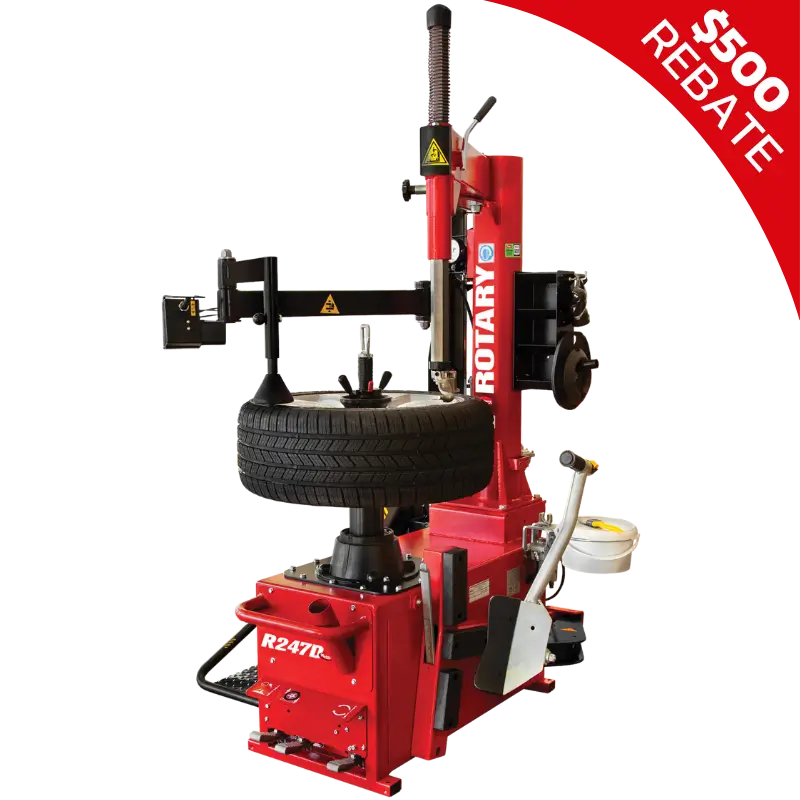

Rotary® Tire Changer – R247D.CL | Swingarm Center Lock Tire Changer
Original price was: $16,670.00.$10,919.00Current price is: $10,919.00.
The Rotary R247D-CL Tire Changer is engineered for high-volume tire centers, combining productivity features with user-friendly operation. Its easy-to-use center post mounting reduces wheel damage, while a quick-locking wheel centering adapter, side-mounted bead breaker, and integrated wheel lift streamline the tire-changing process.
- Quick Locking Wheel Centering Adapter
- Side Mounted Bead Breaker
- Integrated Wheel Lift
- Storage cabinet standard
- Variable Speed Control Inverter
- Lower Bead Lifting Roller
- Pneumatic Top Bead Pressing Tool
- 220v Drive Motor Provides Needed Torque
The Rotary R247D-CL Tire Changer is a high-performance machine designed for the busiest tire centers, featuring advanced productivity and safety elements for streamlined operation. Its center post swing arm design and quick-lock wheel centering adapter improve efficiency, making it the go-to choice for high-volume tire servicing. This tire changer reduces the risk of wheel damage while speeding up operations, making it a favorite among professionals.
Equipped with a hand-operated, double-acting bead breaker cylinder, the R247D-CL is versatile enough to handle a variety of tire sizes and types. The tire changer comes standard with both plastic and steel mounting heads, accommodating different wheels to prevent rim damage. The powerful 220V variable speed motor provides the torque required for tough jobs, allowing precise and adjustable speed control for smooth mounting and demounting.
Additional Features of the Rotary R247D-CL Tire Changer
- Center Post Swing Arm Design: Offers ease of operation and increased productivity.
- Quick Lock Wheel Centering Adapter: Secures wheels with minimal effort, ensuring safe and efficient handling.
- Double-Acting Bead Breaker Cylinder: Provides enhanced control with a hand-operated system.
- Plastic & Steel Mounting Head: Accommodates various wheel materials to prevent rim damage.
- Variable Speed Control Inverter: Customizes rotation speed for different tire and wheel types.
- Pneumatic Top Bead Pressing Tool: Ensures accurate bead placement.
- Lower Bead Lifting Roller: Assists with easier mounting and demounting.
Technical Specifications and Site Requirements
- Wheel Diameter Capacity: Suitable for wheels ranging from 10” to 30”.
- Handheld Inflator/Bead Blaster: Allows for convenient inflation and bead seating.
- Power Requirements: Driven by a 220V single-phase, 60 Hz motor.
- Air Supply Requirements: Requires 115-145 psi air supply.
- Plug Type: Compatible with NEMA L6-20P plug for secure connections.
Included with the R247D-CL Tire Changer:
- (1) Tub of mounting paste with brush for lubrication during mounting and demounting.
The Rotary R247D-CL Tire Changer offers exceptional features designed to boost productivity in busy tire centers. From its center post swing arm and quick lock adapter to the double-acting bead breaker, this machine provides the reliability and efficiency needed for professional tire service. With variable speed control and a range of advanced features, the R247D-CL is an ideal investment for any shop focused on speed, safety, and quality service.
| Power Supply | 220v / 1Ø / 60 Hz |
|---|---|
| Max Bead Breaker Opening | 15" |
| Bead Breaker Cylinder Power at 145psi | 6,745 lbs |
| Recommended Air Supply | 115-145 PSI / 8-10 bar |
Limited Warranty Statement for Wheel Service Products
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner.
Important: The warranty period begins on the invoice date to an authorized Distributor, Purchaser, or Account. This date can be adjusted by submitting to VSG Customer Service a Warranty Activation Form indicating the installation date or proof of retail purchase date.
This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Warranty for Accessories
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. Normal wear and tear of parts is not covered.
Warranty Conditions
- Warrantable Failures: VSG will, at its option, repair or replace any part that has failed due to a defect in material or workmanship.
- VSG may require parts to be returned for inspection to determine warrantability.
- This warranty does not cover:
- Normal maintenance or adjustments, including routine calibrations.
- Damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, or carelessness of operation.
- Force majeure events.
- Unauthorized repairs or alterations.
Warranty Coverage
| Model/Series | Functional Parts** | Labor Warranty |
|---|---|---|
| WHEEL SERVICE | 3 Years | 1 Year |
Exceptions: Calibrations, routine maintenance, and alterations are not covered under warranty.
Exclusions:
- Paint Defects Due to External Influences: Accidental damage, climate, thermal or chemical exposure, industrial pollution, insufficient care or maintenance.
- Air-Powered Items: Damage caused by external fluids or moisture.
Limitation of Liability
This warranty is exclusive of all other expressed or implied warranties, including merchantability or fitness for a particular purpose. The remedies described are exclusive, and VSG shall not be liable for any special, consequential, or incidental damages of any kind, including but not limited to delays or breach of warranty.
This warranty is governed by the laws of the State of Indiana and subject to the exclusive jurisdiction of courts in Jefferson County, Indiana.
