Forward Lift® CR14 | Four Post General Service Lift
$9,279.00 – $10,810.00

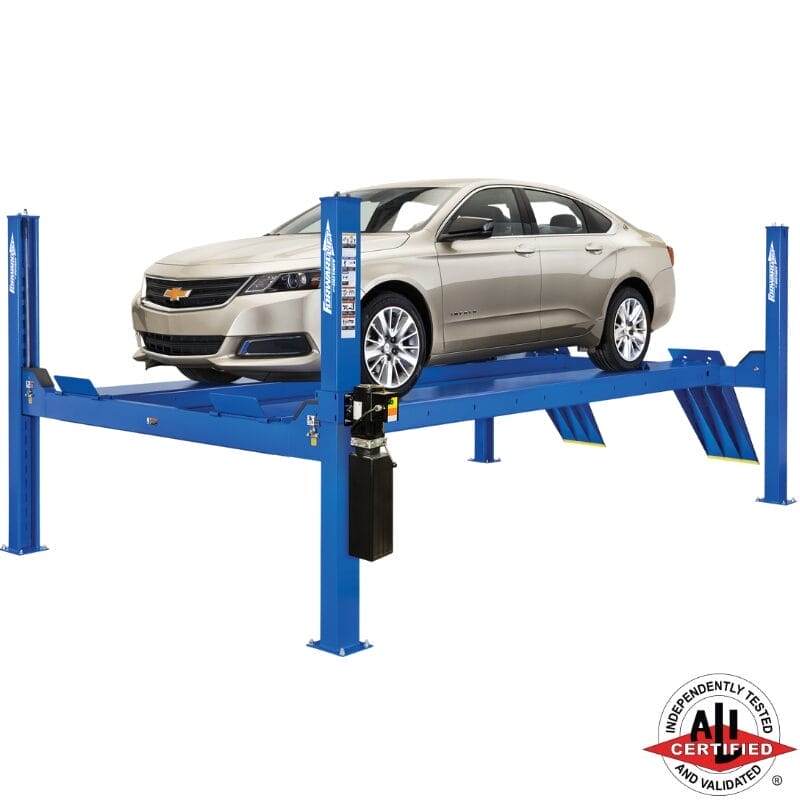

This heavy-duty lift is designed to accommodate a wide range of vehicles with its 14,000 lbs. capacity, making it suitable for cars, vans, and trucks. It features a tall column design that provides a 79″ rise height, ensuring better access for technicians during vehicle service.
The lift includes multi-position lock components for added flexibility in the shop. The improved cable and sheave system is robust and hidden under the runway, offering increased capacity and longevity. This design prevents snagging during work and allows for easy inspection.
The lift is finished with a durable powder coat for long-lasting aesthetics. It also has self-chocking approach ramps that engage automatically and include protective strips to prevent floor damage.
All Forward Lift® products undergo proof load testing to 1.5 times their rated capacity, ensuring top-quality, safe, and durable service solutions.
FEATURES:
- Heavy duty hydraulic cylinder
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
ALI GOLD CERTIFIED
TWO MODELS AVAILABLE:
- 182 1/2″ maximum wheelbase (CR14N201Y)
- 215″ maximum wheelbase (CR14N202Y)
ADDITIONAL FEATURES:
- 78 – 3/4″ rise height provides better vehicle service access
- Heavy duty high-performance cable and sheaves system
- Easy to use single point lift operation with one button air operated lock release
- Multi-position lock components allow lift to be level at any lock position
- Self-chocking 41″ approach ramps with protective strips
- Durable powder coat finish
LIFT OPTIONS:
- Bolt-on, runway alignment kit with turning radius gauges and two 7,000 lbs. rolling jacks
- Drive-through ramps
- 3-phase motor
- Runway lighting
- Internal airline kit
OPTIONAL ACCESSORIES:
- 7,000 lbs. capacity rolling bridge jacks
- Drive Through ramps optional
- Internal airline kit
- Turning radius gauges
- Power unit cover
- 3-phase motor
| Capacity | 14,000 lbs |
|---|---|
| Max Rise | 78 3/4" |
| Max Wheelbase | 182 1/2", 215" |
| Overall Length | 250", 283" |
| Overall Width | 131 3/4" |
| Width Inside Columns | 116 1/4" |
| Length Between Columns | 195 1/4", 228 1/4" |
| Overall Height | 90 1/2" |
| Runway Width | 20″ |
| Runway Height | 7" |
| Width Between Runways | 43" or 46" |
| Rise Time | 72 seconds |
| Motor | 2HP |
| Minimum Bay Size | 15 x 26 ft, 15 x 28 ft |

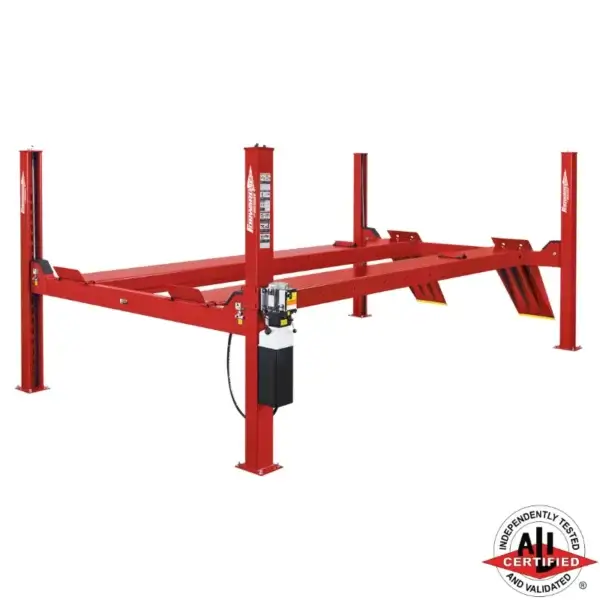

| Lift Color Options | Blue, Red |
